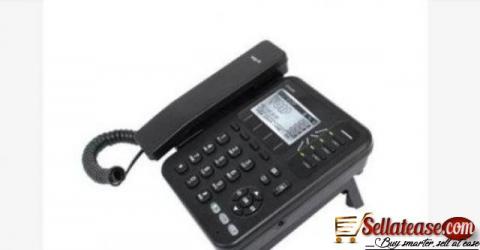

4 Lines Wireless Desktop IP Phone IP542N By Hiphen
Product Description

FEATURES:

Key Features of IP542N

The IP542N is an excellent choice for wireless desk top business IP phone. Standard features on IP542N includes four active lines and 4 dynamic soft keys, 802.3af PoE support, high-quality speakerphone, a wireless (802.11g) client and 2.5mm headset port. Each line can be configured independently to use a unique phone number or can use a shared number that is assigned to multiple phones.

The phone also provides the option for wireless network connectivity, providing unrestricted placement.

IP542N supports various auto-provisioning method using state-of-the-art technologies such as TR-069, HTTPS, HTTP and TFTP. IP542N provides a rich user experience with wireless (892.11g) connection HD voice for excellent voice clarity and intuitive menu options.

IP542N Specification

Hardware Features

Interface 2 RJ-45 WAN port(10/100Mbps Ethernet port)

3.5mm earphone jack

3dB internal antenna for 802.11n 1T1R

Full duplex hands-free speaker phone

Headset and wall mount

1 Power set

Display 128×64 Graphic LCD with white back light

Phone Keys 4 soft keys

4 Line keys with red-green dual color LEDs for indication

MENU, SMS, HOLD, Volume+, Volume-, Headset, Handsfree and navigate key MUTE

12 Dialing Buttons(0~9,*,#)

LED 4 line LEDs used to indicate line status

1 MSG LED

1 Handsfree, 1 Handset LED

1 MUTE LED

Power Supply AC Input : 100-240v, 50-60Hz; DC Output: 5V, 1A

IEEE802.3af PoE in WAN port(IP542NP only)

Environmental Operation Temperature: 0~50 Degree C

Storage Temperature: -25~85 Degree C

Relatively Humidity: 10%~90% No Condensing

Shock: Up to 75cm Drop upon package

Dimension (L)220×(W)187×(H)97mm

Unit Weight 602g(without package)

Software Features

Audio Codec Features G.711(A-law, u-Law)with PAMS above 4.3

G.729A/AB with PAMS above 4.0

G.723.1WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
