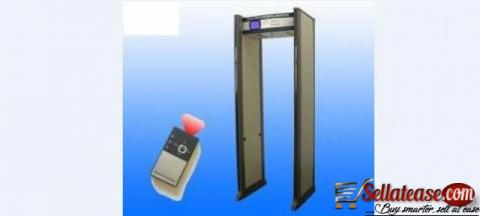

Airport Walk-through Body Scanner Metal Detector by Hiphen solutions

Airport Walk-through Body Scanner Metal Detector by Hiphen solutions
Ad details

Products Introduction:

(1) to detect the region without blind spots;

(2) precise positioning: average distribution of six independent detection region, to detect the target, the sound and light simultaneously Alarm, LED alarm light on both sides of the main body alarm zones, accurately positioning, visual display of digital objects

(3) modular design: the use of modular design, installation convenience, easy to rule out failure.

(4) self-diagnosis functions: built-in self-diagnostic procedures, power-on self test.

(5) microprocessor technology: the control more flexible, through the control panel can be programmed to all default parameters, To meet the needs of users use requirements

(6) complex circuit design, infrared devices, computer automatic identification, can effectively reduce false positives and omissions, and since Dynamic statistical report to the police frequency, through the number.

Alarm way: Audio Alert,and LED Location lamp work at same time

Detection Zone: 45 zone

Display ways: 8 status led display

Sensitivity: 0-255 adjustable

Tunnel Size: 200(L)*68(W)*56(H)cm

Dimension: 222(L)*80(W)*67(H)cm

Net Weight: 51.5kg/set Gross Weight:71kg/set

Package Size: Main Body: 230*72*25cm(2 piece /carton)

Host Machine: 78*47*28cm(1 piece/carton)

Products specifications:

1. Meet the standard: "GB15210-1994. Through the metal detector door general technical conditions" national standards.

2. Basic safety: meet GB4793 requirements.

3. Personnel pass rate: greater than 45 person / min.

4. Power: 110V / 220AC, 50 / 60HZ.

5. Channel size: 220cm(H)*82cm(W)*55cm(D); Dimensions: 200cm(H)*70cm(W)*55cm(D)

6. Working environment: -20 ℃ ~ 65 ℃, ≤ 95% RH.

7. Net weight: 65kg / sets; Gross weight: 71kg / sets.

8. Packing size: Door panel: 227*62*19CM (2 pieces / box) Main chassis: 76*49*26CM (1 / box).


WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA

OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY

Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 0802-589-7223, 0818-116-0990

Email: info (AT) hiphensolutions.com

Web: www.hiphensolutions.com/products

We are Multi-Award Winning company in Technology Solutions, Access Control, Safety, Security and Automation Systems
