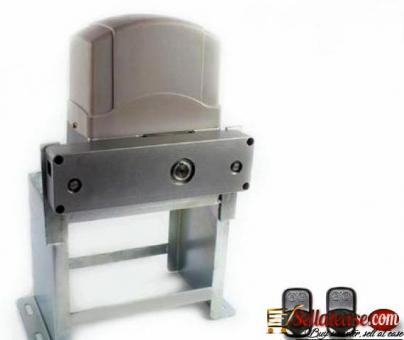

Automatic Sliding Gate Opener by hiphen solutions
Product Description

Specifications

Item Type:Slide Gate Opener
Maximum Gate Weight: 1400lbs
Maximum Gate Length: 40ft (includes 20ft of chain)
Power Supply: 110V AC, 60Hz
Gate Move Speed: 43ft/min (8.5"/second)
Motor Speed: 55RPM
Output Power: 200W
Remote Control Range: 100ft (Frequency: 433.92 MHz)
Output Shaft Height: 48mm
Max. Gate Weight: 1400lbs
Output Torque: 16Nm
Limit Switch: Magnetic Limit Switch
Noise: <56dB
Max # of Remotes 25
Duty Cycle: S2, 15 Minutes
Operating Temperature: -4°F~+122°F (-20°C~+50°C)

Features

1. Automatic Sliding Gate Opener with 2x Wireless Remotes
2. Auto-Close Feature can be set to 12, 24, or 36 seconds with the option to disable
3. Pedestrian Mode can be used to open gate about 1-5 ft
4. Adjustable Soft Start and Slow Stop Functions
5. Use the 4-Button Remotes to Open, Close, Stop, or use the Pedestrian Mode on the Gate

Operation Note

? It features 2 main safety systems:
a. The gate must be on level ground and cannot operate on an incline.
b. The RF hopping code technology prevents your remote code from being accessed by others.
? With the auto-close option, you can set the gate to close 12, 24, or 36 seconds after it opens.
? You can add up to 23 extra remotes that can control this system.
? In case of a power outage or an emergency you may also use manual release key.
? The gate must be on level and this unit can't work on gate on an incline.

Package

1x Manual
1x Sliding Gate Opener Unit
1x 20ft of Chain (Can be split into 2x 10ft Chains)
2x Remote Controls
2x Manual Release Keys
1x Mounting Hardware
1x Installation Parts
