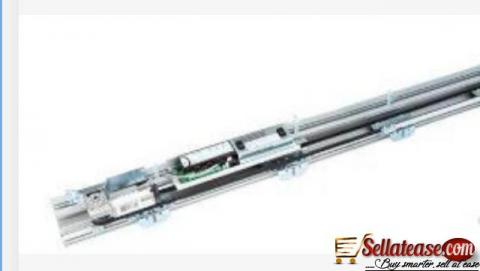

Heavy Duty Automatic Sliding Door Controller System BY HIPHEN SOLUTIONS


Heavy Duty Automatic Sliding Door Controller System BY HIPHEN SOLUTIONS

Main Features:

1) Advanced and reliable microprocessor controller are applied.

2) Brushless motor with a long life span and energy conservation.

3) Opening & Closing Speed adjustable.

4) Automatic reverse on obstruction

5) Automatic / open/ closed/ half-open status can be set as need.

6) Automatic adjustment and manual adjustment are available.

7) Simple and convenient installation.

8) Opening and closing smooth with low noise.

9) Interlock and electric lock function support multiple access control systems.

10) With high load capacity, it can also stand heavy door leave.

Technical Parameters:

Configuration

Single-leaf

Double-leaf

Guide Rail 2100mm-6000mm

Max Door Weight

1*150kgs

2*120kgs

Door Width 750-1600mm 650-1250mm

Power

AC 110V-220V ,50-60HZ

AC 110V-220V ,50-60HZ

Motor Brushless DC 24V,65W

Opening speed(adjustable)

200-450mm/s

200-450mm/s

Closing Speed(adjustable)

200-450mm/s

200-450mm/s

Hold Open Time(adjustable)

0-9s

0-9s

Manual Force

<40N

<50N

Sliding Noise

<55 DB

Power Consumption

70w

Ambient Temperature -20~+50℃
