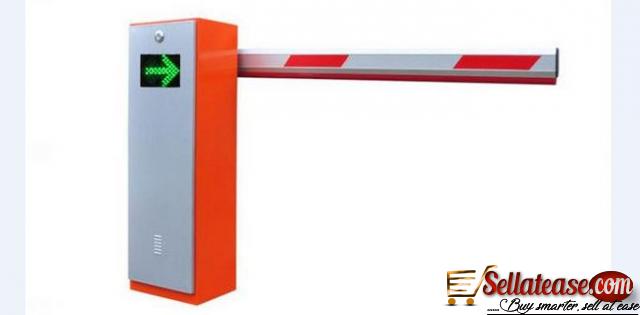

Remote Controlled Boom Barrier - 6m By Hiphen

Remote Controlled Boom Barrier - 6m By Hiphen
Product Description

1. Normal speed of closing/opening: 2 /3 / 4 sec. optional

2. Straight boom arm with rubber bar, Max.length following:

6m for 4 sec. & without anti-collision

4m for 4 sec. & with anti-collision

5m for 3 sec. & without anti-collision

4m for 3 sec. & with anti-collision

4m for 2 sec.

3. Inclusive of arm ×1 and push button ×1 which opens/closes barrier

4. Exclusive of LED light bar,remoter, boom bracket,anti-collision: need to buy extrally

5. Optional housing color as yellow (default)/ orange / white / blue

6. Optional boom arm direction as leftward/rightward

100% duty cycle operation with 5 million MTBF

Free-maintenance torque motor ensures 100% duty cycle operation with 5 million MTBF. The torque motor is environmentally friendly, energy-saving, and maintenance-free. No current shock and overheating while working, it protects the controller and prolong its lifetime.

Easy installation and maintenance reduces your labor cost

Simple structure and no limit switch design ensures easy installation and maintenance which reduce your labor cost

Heavy-duty, weather-proof and simple-design housing

The housing adopts 2mm precise machining cold-rolled plate and static electricity sprayed anti-UV surface which is non-scale and unfading, conformed to the IP54 dustproof and waterproof. Simple design also decorates your premises.

Automatic self-checks errors

The system always automatically self-checks operation status and reports errors shown on the LED tube of the controller

Sine lever drive mechanism ensures smooth landing of boom without shaking

The patented precise casting sine lever drive mechanism enables the boom arm moves from slow to fast when it starts, and fast to slow when it stops. This will effectively reduce the shaking of the boom arm and allay the burden of the electrical motor, so that the lifetime of the motor and mechanical components will be greatly prolonged.

Boom to automatically open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening, boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees.

Anti-collision protects boom arm (optional)

Anti-collision protects the boom arm not to be damaged once boom arm was collided by a vehicle.

Safety of "Anti-hit" ---Loop Detector

While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.

Safety of "Anti-hit" ---Prior to opening

If a vehicle is coming while boom arm moving down, the boom arm will immediately go back to vertical position once loop detector is trigged by the vehicle or manual commands is given by guard, which protect the vehicle not to be hit by boom arm.

Safety of "Anti-hit"---Rebound upon obstacle

While moving down, boom arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.

Safety of "Anti-hit"----Infra Red (optional)

While moving down after vehicle passed, boom arm will immediately go back to vertical position once the IR transmission between the receiver and transmitter was blocked by a vehicle or person, which protects the vehicle or person not to be hit by boom arm.WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
