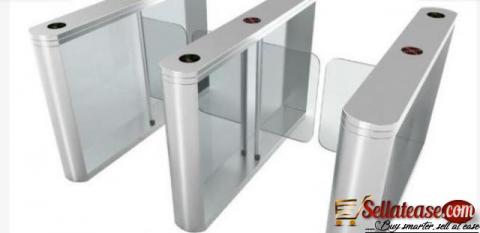

Silver Automatic Barrier Gate Turnstile Systems BY HIPHEN SOLUTIONS

Silver Automatic Barrier Gate Turnstile Systems BY HIPHEN SOLUTIONS
Ad details
Detailed Product Description
Product Name: Speed Gate Material: 304 Stainless Steel
Thickness: 2.0mm Color:: Silver
Sensing Method:: Electric Application:: Access Control System
Silver Automatic Intelligent Barrier Gate Turnstile Systems saving energy

Feature:

Suitable for high-end buildings;

Low power consumption, saving energy and protecting environment;

Durable because all the internal parts are with antirust and antiseptic treatment;

Mechanism with the world’s top DC brushless motor and accurately positioning encoder, to make sure the arms to rotate rapidly and exactly, stably and noiselessly;

By using more than 10 pairs of military level high-performance infrared sensors, it can accurately achieve many functions, such as detect illegal passing, anti-clamping and anti-bruising, direction-judgment function, anti-tailgating and so on;

The lane width can be customized to be larger for the handicapped people.

Basic Function:

Automatic reset function: The turnstile will open the gate after receiving the valid opening signal when standby. The swing gate will return to the hindered zero position automatically under the following situation:
1) Within the allowed time, pedestrians have been detected in the specified direction passing the passage;

2) Over the allowed time, there is no people has been detected passing in the passage.

Passing mode switching function: The entry and exit can be set independently 【controlled mode】 /【 free mode 】/【 forbidden mode】

Self-recovery function: The swing gates do not return to the hindered zero position because of human intervention. After revoking human intervention, the gate automatically return to the hindered zero position.

Memory function of passing requests: When more than 2 passing signals are given at the same time (including the same direction and opposite direction), the system will remember all the passing requests and finish them one by one. The number can be up to 255.

Passing indication function:
1) Direction indicator: The direction indicator is installed on the top of the housing to indicate the valid passing direction.

2) Passing status indicator: It is installed inside the housing side, indicating whether the swing gates can open after receiving the valid signal.

Compatibility: Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.

Automatic adjustment function: When the turnstiles need to re-adjust because of mechanical wear, the main board can automatically adjust, accurate and convenient.WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA OFFICES IN LAGOS, ABUJA,PORT HARCOURTAND BENIN CITY
