Speed Gate Turnstile For Entrance Control System BY HIPHEN

Speed Gate Turnstile For Entrance Control System BY HIPHENAd details
Detailed Product Description
Product Name: Speedgate Material: 304 Stainless Steel
Sensing Method:: Slot Reader Motor: Servo Motor
Packing:: Wooden Direction:: Double Ways

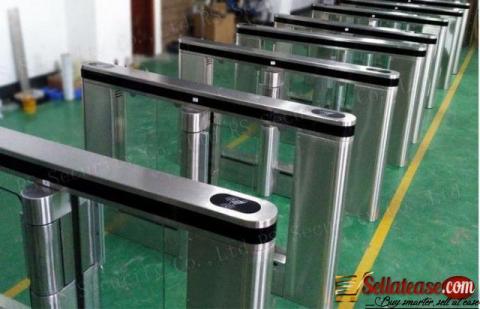

RFID Security metro Speed Gate Turnstile for Entrance Control System

Intelligent bridge type swing gate turnstile RS 716 is one of the slimmest in the industry at present. RS 716 side is with tempered glass, transparent and bright, simple and elegant; the housing made of stainless steel is durable; the mechanism modules are imported from Europe brushless DC motors and precise positioning encoder, so as to make sure the swing gate can rotate quickly and accurately, stablyand quietly, with low-power consumption, energy conservation and environment protection.

Security Design:

Self-check function when power on: The system will self-check routinely and alarm when the power is on,and intelligently detect the key hardware and function. Find the hidden danger within the shortest time!

Open gate when the power is failure: Adopt the leading mechanical structureby original creation; the system will unlock the gate automatically when power is off; manually push the gate to be open and convenient to evacuate people, which meets the fire requirement.

Anti-clamping function:

(1) Anti-clamp by infrared sensor: Install multi-pair of infrared sensors near the anti-clamp area where swing gate is moving. Once people or thing is detected within the anti-clamp area, the swing gate will automatically stop moving; until the people or thing leaves the anti-clamp area, the swing gate will continue to move.

(2) Mechanical anti-clamp: The swing gate will automatically stop moving when the swing gate encountersobstacles; the impulse force is within the safety range when the swing gate is moving.

Technical Parameter:

Power and Voltage 100-240VAC, 50/60HZ
Operation Voltage DC 24V
Rated Power 100W
Machinery Mechanism MTHTTM Lossless mechanism
Driving Motor DC brushless motor
Positioning Method Encoder
Controlling Method of Motor DSP
Communication Interface RS485 / RS232 (default); TCP/IP (optional)
Control Input / Output 8 channels dry contact signal input / 12 channels relay control output
Passing Speed 30 ~ 45 people/min (depending on the passing situation)
Evacuation Passage Speed 60 people / min (depending on the passing situation)
Operation Temperature ﹣20℃~60℃
Humidity Temperature 0~95% (non-condensation)
Working Environment IndoorsWE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA OFFICES IN LAGOS, ABUJA,PORT HARCOURTAND BENIN CITY

Please CALL/WHATSAPP: 0807-779-7562, 08025897223

Email: marketing@hiphensolutions.com

We are Multi-Award Winning company in Technology Solutions, Access Control, Safety, Security and Automation Systems.
