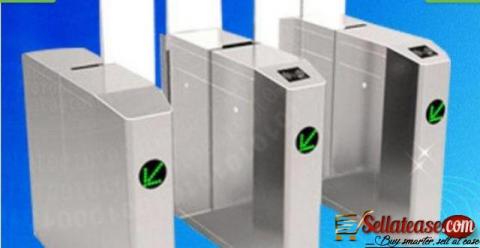

Stainless Steel Flap Barrier Gate Turnstile BY HIPHEN SOLUTIONS
Ad details
Detailed Product Description
Material: Stainless Steel Work Voltage: AC220C±10V,50HZ
Size: 1200*165*980mm Relative Humidity: ≤95%, No Condensation
Max Passageway: 1030mm Package: Plywood
304 Stainless Steel Flap Barrier Gate Turnstile, Automation Biometric Tripod Turnstiles
Specification:
Framework Material
304 Stainless Steel
Dimension
1410 * 310 * 1005mm
Net Weight
87kg
Passage Width
550mm (One passage)
Passing Direction
Single directional / Bi-directional
Power Supply
100V~240V, 50/60Hz
Operation Voltage
24V DC
Power Consumption
35W
Operation Temperature
-25 °C – 70 °C
Operation Humidity
0 ~ 95% (No freeze)
Working E...
Stainless Steel Flap Barrier Gate Turnstile BY HIPHEN SOLUTIONS
Ad details
Detailed Product Description
Material: Stainless Steel Work Voltage: AC220C±10V,50HZ
Size: 1200*165*980mm Relative Humidity: ≤95%, No Condensation
Max Passageway: 1030mm Package: Plywood
304 Stainless Steel Flap Barrier Gate Turnstile, Automation Biometric Tripod Turnstiles
Specification:
Framework Material
304 Stainless Steel
Dimension
1410 * 310 * 1005mm
Net Weight
87kg
Passage Width
550mm (One passage)
Passing Direction
Single directional / Bi-directional
Power Supply
100V~240V, 50/60Hz
Operation Voltage
24V DC
Power Consumption
35W
Operation Temperature
-25 °C – 70 °C
Operation Humidity
0 ~ 95% (No freeze)
Working Environment
Indoor / Outdoor (Shelter)
Flow Rate
30-35 people per minute
LED Indicator
Yes
Infrared Sensor
Yes
Input
12V Dry contact
Emergency
Automatic arm open when power off
Overview:
* Flap Barrier A222 is designed to control pedestrians entering or exiting restricted areas, usually used
of high pedestrian traffic flow in both directions.
* The body is made from brushed stainless steel which creates a seamless and elegant access point to
blend into most indoor environment.
* It can be integrated with any kind of access controller system (e.g.: RFID device, Push button,
Fingerprint and Biometric device).
* In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
* Flap Barrier A222 is suit for elegant and luxury entrance solutions.
Features:
* The whole system runs smoothly, long-life performance, high operation dependability and fast
response.
* Alarm function, in case of illegal intrusion and reverse intrusion.
* Infrared sensor to prevent pinch pedestrians.
* Anti-breakthrough function. The gate is locked automatically until opening signal received.
* Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
* LED indicator.
* Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds),
the system will cancel the authority of the current user automatically.
* When power off, optical turnstile will open automatically, which is complying with fire safety
requirements.
WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA OFFICES IN LAGOS, ABUJA,PORT HARCOURTAND BENIN CITY
Please CALL/WHATSAPP: 0807-779-7562, 08025897223
Email: marketing@hiphensolutions.com
We are Multi-Award Winning company in Technology Solutions, Access Control, Safety, Security and Automation Systems.
