Weatherproof Walk Through Metal Detector by Hiphen solutions

Weatherproof Walk Through Metal Detector by Hiphen solutions
Ad details

Specifications:

Operating Temperatures

-4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing

Power

Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets UL, CE,FCC standards.

Weatherproofing / Foreign Object Protection Standards

Tamper-Proof

All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.

Construction

Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.

Control Outputs

Solid state switches (low voltage AC or DC) for operating external alarms and control devices.

Traffic Counter

Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.

Synchronization

Dual channels and DSP circuitry allow several XST-F8's to operate simultaneously in close proximity to one another.

Interference Suppression

Special Security King DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.

Alarms

Audible tone and volume adjustable. Bright LED visual alarm.

Target Pinpointing Lights

8 distinct zones are displayed with 2 independent columns of LED's located on exit side of XST-F8.

Pacing Lights

International symbols

Warranty

Limited 24 months, parts and labor

Features:

Easy Assembly

The XST-F08's modular design allows for a quick and simple assembly of its 4 (four) sub-assemblies using only 8 (eight) screws and 3 (three) internal electrical connections.

8 Distinct Pinpoint Detection Zones

The XST-F08 offers exclusive multiple target pinpointing with 8 distinct zones for full target coverage on the left, center and right side of the body from head to toe.

Entry Pacing Lights

Smooth, efficient traffic flow with easy-to-view, eye-level pacing lights with international "wait" and "proceed" symbols on the entrance side of each panel.

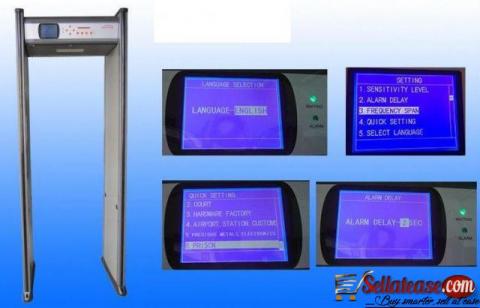

Overhead Control Unit

LCD Display, alarm lights, LED bar graphs and control touchpads plus all wiring, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and external control box.

Multi-dimensional Coil Design

The XST-F08's exclusive multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation.

Audible and Visual Alarms

Audible alarm and Visual LED lights signal when a target has been detected.
