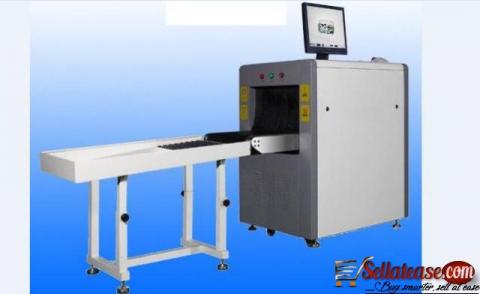

X-ray Luggage And Baggage Scanner by Hiphen solutions

X-ray Luggage And Baggage Scanner by Hiphen solutions
Product Name: Baggage Scanner Wire Resolution: 0.077mm Metal Line

Tube Current: 0.4~1.2MA（adjustable） Anode Voltage: 100-160 KV(adjustable）

Generator Cooling/working Periods: Sealed Oil Bath With Forced Air/100％ Tunnel Size: 650*500mm

Conveyor Speed: 0.22m/s Leakage Radiati: N Dosage::: ≤ 0.1μGy/h

Steel Penetration: 13MM Armor Plate

12mm Steel Penetration Typical X Ray Luggage/Baggage Scanner

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance.

Tunnel Size 650(W)*500(H)mm

Conveyor Speed 0.22m/s

Conveyor Max Load 170kg

Dose per Inspection <0.89μGy

Resolution 34AWG to 40AWG

Spatial resolution Level dia1.0mm, Vertical: dia1.0mm

Penetrate resolution 24WG to 34AWG

Penetration 36mm to 42mm Steel

Film Safety Guarantee ISO1600 Film

X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external housing)

Conveyor Height 67.6cm
