Detailed Product Description
Product Name: Fastlane Turnstile Model: RS 716
Classis Thickness: 1.5-2.0mm Material: 304 Stainless Steel
RS Security Sevice: OEM/ODM Application: Entrance/ Exit Management System

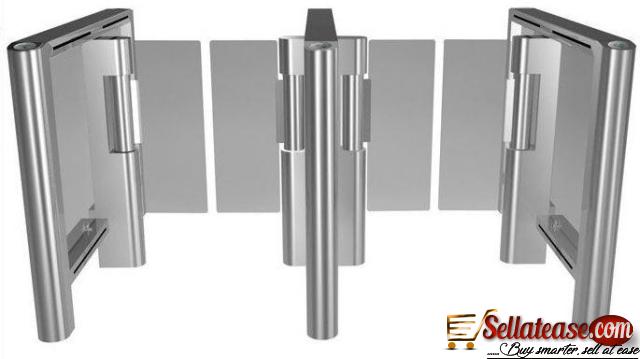

High Security Automatic Stainless Steel Barrier , Swing gate barrier





product name:High-Grade Swing Barrier Gate
Model:RS 716
Entrance/ Exit management system
Built-in counter swing gate
Door sensor barrier
OEM/ODM turnstile
single pole swing barrier

Barrier Gate,Intelligent Barrier Gate,Automatic Barrier Gate,Traffic Barrier Gate,Boom Barrier Gate,Road Barrier Gate,Parking Barrier Gate,Car Barrier Gate,Boom Gate,Boom Barrier Gate,Security Barrier Gate,Safty Barrier Gate,Gate Bridge Barrier,Barrier Arm, Boom Arm,Vehicle Barrier Gate,Vehicle Parking Barrier gate,Vehiclie Boom Gate,Industrial Barrier Gate,Remote Control Barrier Gate,Electric Barrier Gate,Folding Barrier Gate,90 Degree Folding Barrier Gate,180 Dgree Folding Barrier Gate,Fence Barrier Gate,2 Fence Barrier Gate,3 Fence Barrier Gate,Gate Barrier,Arm Gate,Arm Barrier



Product Name: Swing gate barrier



Model: RS616B



Intelligent swing gate turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies. Adopt reliable security protection equipment, alarm equipments, direction indicator and extended friendly LED panel display.It has Standard input and output interfaces; It is best choice for system integrators. Compatible with Mifare card, 125kHz card, barcode and fingerprint reader and so on.




Specification



² Weight: 90kg

² Swing angle: 0-180

² SDrive voltage: 24V

² Arm length: 300-600(mm)

² LED indicating light: One

² Card-reading window: Two

² Interface: Standard port-RS485

² Auto reset time when there is breakdown: 10sNormal life: 3 million times

² Power voltage: AC220 (10%more or less) V, 50(10%more or less) Hz

² Transit speed: 30— 40persons per minute (normal open), 25-30 persons/per minute ( normal close)Run into working state when power on: 3 s

² Communication interface: RS 485, distance <= 1200mInput interface: Relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms, drive current>10mA









Function:



² LED lamp indicator

² One way or two way control

² Working method can be set by the buttons on the main panel

² Anti-illegal in, anti-intrusion, auto close for reverse direction.

² Anti-collision, gate closes when no valid signal is given.

² Gates can be synchronous

² Reset function by photocells, 4 or 6 pairs.² Anti-pinch function by photocells, 4 pairs

² Unit can be controlled and administered by remote control

² Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.

² Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.

² Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.² Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
