Bi-Direction IR Sensor Automatic Flap Gate Access Control BY HIPHEN SOLUTIONS

Bi-Direction IR Sensor Automatic Flap Gate Access Control BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description

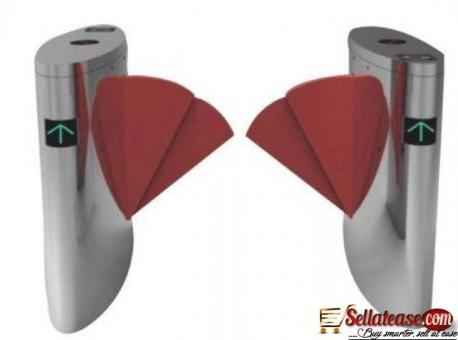

Series: Flap Barrier Product Name: Double Red Wing Flap Barrier
Model: RS 788 Brand: RS Security
Material: 304 Stainless Steel Size: 1200*300*980mm
Bidirection Metro IR Sensor Automatic Flap Gate Access Control Flap Barrier
Series: Flap Gate
Product Name: CE Entrance Flap Gate
CE Entrance Flap Gate RS 788 ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



Specifications



No.
Parameter
Value
1

Casing material

China standard 304#SS

2

Work voltage

AC220V±10% 50HZ±10%

3

Drive motor

DC 24V brush motor

4

Dimension

1200*300*980MM

5

Wing length

260mm

6

Max lane width

600MM

7

Pass direction

one or bi-directional

8

Work environment

Indoor or Outdoor ( Shed house needed)

9

Work temperature

-10℃～70℃

10

Relative humidity

≤90%, no condensation

11

Barrier open and close time

0.6S

12

Transit speed

40 People/minute normal open , 25-30 people/minute normal close

13

time needed for running into work state when power on



14

Auto reset time when there is breakdown

10s

15

Normal work life

3000000 times

16

Communication interface

RS485,

17

Input interface

relay signal, 12 V level signal, 12V pulse signal with pulse width ＞100ms, drive current ＞10mA

18 Model RS 788


Function

1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4.Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7.uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control
11 Unit can be controlled and administered by remote control
Extensible functions:
1. LED counter display
2. Casing and gate size can be lengthened
3. Lgic judgment by photocells (7pair or 9 pairs)
4. Speech reminder
5. normal close or normal open adjustable
6. Light, sound alarm

WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY
Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 08025897223, 0818-116-0990 Email: info (AT) hiphensolutions.com
Web: www.hiphensolutions.com/products
We are Multi-Award Winning company in Technology Solutions,Access Control, Safety, Security and Automation Systems.
