Security Biometric Access Control System BY HIPHEN SOLUTIONS

Security Biometric Access Control System BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Size: 1200*300*990mm Material: 304 Stainless Steel
Wing Color: White (Optional) Series: Flap Barrier
Product Name: Right Angle Flap Barrier Chassis Thickness: 1.5-2.0mm

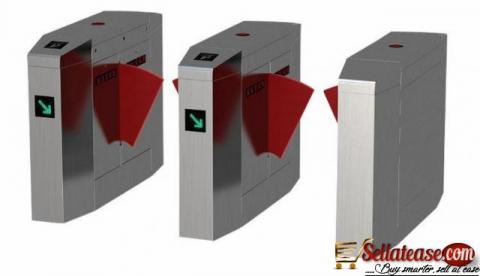

IR Sensor Flap Barrier Gate Turnstiles Security Biometric Access Control System


Quick Detail:



Product Name:IR Sensor Control Flap Barrier



Model :RS 488



security gate,tripod turnstie,flap gate,parking system



Material: 304 stainless steel



Size: 1400x300x990mm



Bi-directional access control



Color: silver and red



Application: custom, port, airport,



Brand Name: RS Security









Flap Gate Description:





The double wing gate is designed for places that requires wide passage access control, it is for



wheelchair or big luggage , the max lane width up to 900mm.



The speed gate barriers are designed to work in a normally closed mode and retract inside the



pedestal after a valid card has been presented to allow the authorized user to pass. The fast moving



close behind the authorized person to deter tailgaters.





Features



1. With function of self-examine and alarm, it is convenient for maintenance and use.


2. Being able to program running status by the small keyboard in the main board


3. Preventing pedestrians or bicycle from being nipped and from hurt, the force of the


pole is less than 2Kg


4. Sound or light alarm function


5. Poles are automatically locked until a opening signal is received.


6. Poles synchronization


7. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the



channel in the pre-set time after the opening. The passing time is adjustable.


8, Channels automatically open when power off, and automatically close when power on.


9, Several card reading devices are attachable.


10, One direction or bi-direction control are optional.


11, It can be directly controlled and managed by remote control.





Optional features





Counter:



Voice speech



Remote control





Flap Turnstiles Applications:



High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.





Traffic type



IR Sensor Flap Barrier Gate Turnstiles Security Biometric Access Control SystemIR Sensor Flap Barrier Gate Turnstiles Security Biometric Access Control SystemIR Sensor Flap Barrier Gate Turnstiles Security Biometric Access Control SystemIR Sensor Flap Barrier Gate Turnstiles Security Biometric Access Control System







Flap Barriers Specification





Material



304 stainless steel

Input voltage

220V AC220±10%

Size



1400x300x990mm

Arm width

275mm

Net weight



75 kg/unit

Arm material

Acrylic or soft arm

Motor

24V DC brush

Top Cover

Acrylic or stainless steel

Communication



interface



RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed



30-40 people/minute

Service life

5000,000 times

Close and open time



0.6S

Input interface

Relay signal, 12V level



signal,

Clear passage width



600mm

Work environment

Indoor and outdoor



(shelter)

Number of led lamp



3 pcs

Model

RS488


WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY
Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 08025897223, 0818-116-0990 Email: info (AT) hiphensolutions.com
Web: www.hiphensolutions.com/products
We are Multi-Award Winning company in Technology Solutions,Access Control, Safety, Security and Automation Systems.
