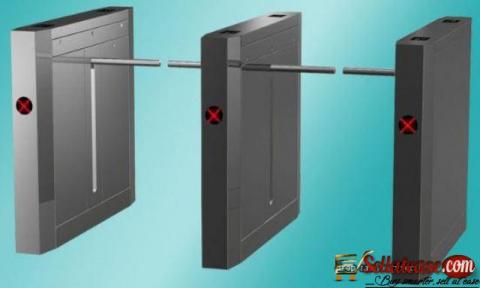

Security Drop Arm Turnstile by HIPHEN SOLUTIONS

Security Drop Arm Turnstile by HIPHEN SOLUTIONS

Ad details
Specifications
1. safety turnstile
2.Material:304#Stainless steel
3. Bi-directional card reading
4, Led indicator
5.produduct name:waterproof drop arm barrier
6.model:RS 1008
7.popular drop arm turnstile
8.Material of case: domestic standard SUS (304#)


Specification
1. Dimension: 1200*170*990mm
2.Length of stick: 300MM, optional range: 250-500MM
3.Weight: 90KG
4.Material of case: domestic standard SUS (304#)
5.Power supply voltage: AC220±10% V,50HZ(AC110V is optional)
6.Drive Motor: DC brushed motors (24V)
7.Input interface: electricity relay switch signal or 12V level signal, or 12V pulse signal with
8.whose pulse width >100ms, drive electricity >10mA
9.Normal service life: 3 million times
10.Communication interface: RS485
11.Transit speed: 30-40 people/ minutes
12.Closing and opening time of stick: 1 second
13.When power on, 3 seconds needed for it to enter into passing status.
14. When there is breakdown, 10 seconds needed for its automatic return/reset.
15. Working environment: indoor, outdoor (shelter)
16.Temperature: -10°C—— 50°C
17.Relative humility: ≤90%, no-condensation



Material

304 stainless steel

Input voltage

220V AC220±10%

Size

1200x165x990mm

Arm length

300-600mm

Net weight

102kg/unit

Glass thickness

10mm

Motor

24V DC brush

Top Cover

Acrylic or stainless steel

Communication interface

RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed

30-40 people/minute

Service life

3000,000 times

Close and open time

0.6S

Input interface

Relay signal, 12V level signal,

Clear passage width

600mm-1200mm

Work environment

Indoor and outdoor (shelter)

Number of led lamp

3pcs

Model

RS 1008



Features:
1. Malfunction self-checking and alarm warning, ease of maintenance and installation
2. Operation method can be programmable
3. Anti-Pinch, stop when it detects movement in the passage.
4. Anti-rushing function: auto lock if no valid signal is given
5. Doors can be adjusted into synchronization (only for double-locks)
6. Pass right will be cancelled if it is beyond the preset time
7. Normal close or normal open
8. Compatible with most access control systems
9. One direction or bi-direction control
10. Remote control by computer
11. Auto reset for time delay
12. passable on power failure, meet the requirements of fire-fighting.
13. Sound and lights alarming: including break-in and opposite direction intrusion, and so on.
14. Counting function (optional)
15. Speech output, human voice warning the right passing. (Optional)

Tag: retractable security barriers, Controlled Access Turnstiles
