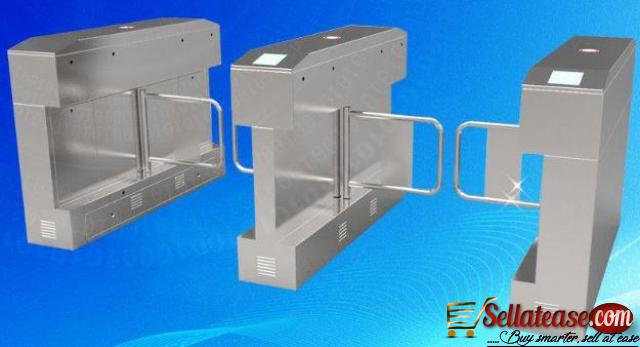

Security Flap Barrier Turnstile Gate BY HIPHEN SOLUTIONS
Ad details
Popular used in many occassion, such as Govement office, enterprise, club, school, libruary, office building, railway-station, hotel, subway, scenic spot, entertainment, park, etc
Specifications:
Status Indication Allow passing through / Forbidden
Power Consumption 1. Paused: 120Watt/Lane; 2. Working state: 250Watt/Lane
Working Environment Indoor; Matching with rain frame for outdoor use
Service Life 10years, 3 millions continuous opening and closing of barrier panel
Communication Interface One RS232 interface, two Card reader signals (Passive), one Fire Alarm Interface
Drive Mode Motorized, electro mechanical Drive System, Photoelectric sensor
Contains Mechanism, Housing, Drive board, Power supply
Glass Width/ Height/ Thickness 250mm/ 650mm/ 10mm
Access Modes 1. Locked 2. Remote control by computer 3. Authorized
Net Weight Side door: 185kgs; Middle door: 235kgs
Dimension 800 × 320 × 1020 (mm)
Working State single or bi-directional, 16modes
Open/ Close Time 0.3/ 0.5 second
Maintenance Port 2units
Voltage Input AC 220V (adjustable)
Working Temperature -10°C-60°C
Noise ≤65dB
Lane Width 500-600mm
Humidity 5%-90%
Housing Material 304 stainless steel
Feacture and Function:
1. Breakdown self-checking and alarm, very convenient to maintenance and use.
2. Easy to program operation mode by built-in little keypad on master controller
3. Machanical Anti-Pinch structure enable motor to stop working automatically in given time if there is something on the way during reset, and reset again after default time delay
4. Anti-rushing function: The gate lock automatically without openning signal
5. Gate synchronization adjustable ( only for double-lock)
6. Automatic resetting function: During openning, the system will cancel access this time if nobody pass in given time.
7. Easy to change NC or NO mode for different requirement
8. Easy to be integrated with magnetic card, barcode card, ID card, IC card, etc
9. One-way or two-way traffic flow available
10. Able to remotely controlled by computer
11. Automatic delay reset process 5 second after open
12. Open automatically when power off and close automatically when power on.
13. Sound & light alarm, including illegal break-in alarm, close automatically for reverse entry, etc
14. Anti-Pinch function (four pairs of infrared)
15. Counting function (optional)
16. Infrared reset function (Optional).
WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY
Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 08025897223, 0818-116-0990 Email: info (AT) hiphensolutions.com
Web: www.hiphensolutions.com/products
We are Multi-Award Winning company in Technology Solutions,Access Control, Safety, Security and Automation Systems.
