Security Sliding Speed Gates Turnstile By HIPHEN SOLUTIONS

Security Sliding Speed Gates Turnstile By HIPHEN SOLUTIONS


Detailed Product Description

Series: Sliding Turnstile Product Name: Oval Sliding Turnstile

Model: RS 1006 Brand: RS Security

Size: 304 Stainless Steel Material: 1210L*310W*980H Mm





Security Pedestrian Entrance Sliding Type Turnstile For Access RS 1006







product name: speed gate turnstile/sliding barrier







Quick details:



Product Name:Speed Gate

Type :Turnsitle,Access Control,Parking System,Traffic Barrier

Brand Name: RS Security

Model Number: RS1006

Size: 1400x330x990mm

Sliding Gate Turnstile

1.Running stably

2.Security Gate

3.Work flexibly

4.High quality and high speed

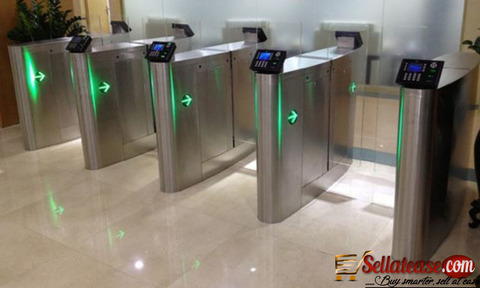

Description:







The speed gate is usually used in high security places, such as prison, fitness club, school, it prevents unauthorized people to enter the restricted areas,

The speed gate barriers are designed to work in a normally closed mode and retract inside the pedestal after a valid card has been presented to allow the authorized user to pass. The fast moving close behind the authorized person to deter tailgaters.













Functions and features:











1) Functions of breakdown self-checking and alarm warning, very convenient for customers' maintenance and use.



2) Program operation mode of equipments through the little button inside the main board.



3) Double Anti-Pinch function from both machine structure and induction. Stops automatically if there is something in the way during the return /rest of the doors. If there is default time delay, it will have its second return (till it comes back to where it should be), and the force is very weak



4) Anti-rushing function: Without having received the signal of opening up, the doors lock automatically.



5) Doors can be adjusted into synchronization (only for double-locks)



6) Automatic returning/resetting function: When the barriers open up, if people do not pass by within the time allowed, system will cancel the right of pass for this time.



7) Adjust it to normal open or normal closed to meet the different requirements of different fields.



8) Can be linked to many kinds of card-reading equipments and work when it has received the signal of electricity relay switch.



9) One-way and two-way in and out control of passer



10) Carry out distant control and management by directly operating computer.



11) Automatic returning /resetting when there is time delay. Normally speaking, it returns/resets five seconds after its opening.



12) When the electricity is cut off, the access opens automatically, and closes automatically when the electricity is linked. Meet the requirements of fire-fighting.



13) Sound and lights alarming: Including break-in and opposite direction intrusion, and so on.



14) Counting function (optional).











Applications:







High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.











Traffic type







Security Sliding Speed Gates Turnstile Accurate Logical Judgment Barrier AccessSecurity Sliding Speed Gates Turnstile Accurate Logical Judgment Barrier Access







Specification











Material



304 stainless steel



Input voltage



220V AC220±10%



Size



1400x300x990mm



Arm width



265m



Net weight



102kg/unit



Arm material



Acrylic or soft arm



Motor



24V DC brush



Top Cover



Acrylic or stainless steel



Communication interface



RS485



Sensor beams



5 pairs for 1 complete lane



Transit speed



30-40 people/minute



Service life



3000,000 times



Close and open time



0.6S



Input interface



Relay signal, 12V level signal,



Clear passage width



600mm



Work environment



Indoor and outdoor (shelter)



Number of led lamp



1pcs or 3 pcs



Model



RS1007a
