Swing Barrier Gate, Access Control Fastlane Turnstile BY HIPHEN SOLUTIONS

Swing Barrier Gate, Access Control Fastlane Turnstile BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Series: IR Sensor Fastlane Turnstile Finish:: Brushed Surface
Power Supply:: AC220V Brand: RS Security
Material: 304 Stainless Steel Motor: 24V DC Brush

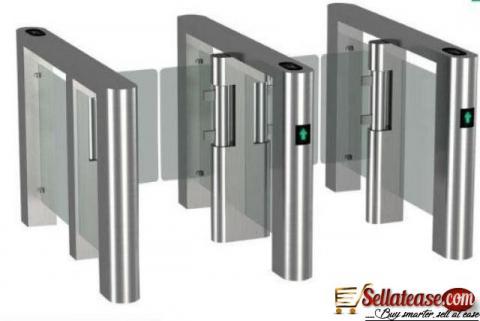

Pedestrian Swing Barrier Gate, Access Control Fastlane Turnstile




Quick Detail:





Product Name:IR Sensor Fastlane Turnstile



Color: Silver white



Model Number:



Type:Security Product



Application: Bank, Office building, company, fitness club, prison, hotel lobby, school



Material: 304 stainless steel





Main Functions and Features:





1.Can be integrated with all kinds of access control systems,survilience system. time attendance and



clocking system etc.



2.Unidirectional or bidirectional access control can be achieved via external button or remote control.



3.Auto –reset, swing arm will auto close within certain time(multi grade time adjusting) after open,



4.Mechanical anti-jam, the swing arm will not close if it detects people or objects inside the aisle.



5.All-round humanized self-protection.When people or objects blocks it’s movement ,system will



continuously detect 1-5 times( each time of 5s )and stay in normal close state, part opponents are



under dormant state.When system cannot detect reset signal(arm hits the housing),system will auto



detect1-5times(each time of 5s),by then, arm return auto back to normal lock state(note :even if the



reset optocoupler is damaged, system still works , motor or circuit won’t get burnt. )



6.Open and close speed can be adjusted from 0.8-2s with 16 grades.



7.Normal open and normal close can be controlled by external button.(for group pass)



8.High brightness indicator, clearly show even in daytime or under sunshine.



9.Humanized passing indicator :flashing green arrow for authorized passing, dark under normal state.



10.Arm drop when power off to meet the fire safety requirements.



11.Swing arms can set synchronously for turnstiles with double movement.





Optional features





Counter:



Voice speech



Remote control





Applications:





High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.





Specification





Material



304 stainless steel

Input voltage

220V AC220±10%

Size



1400x200x990mm

Arm width

300

Net weight



102kg/unit

Arm material

Acrylic

Motor



24V DC brush

Top Cover

stainless steel

Communication



interface



RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed



30-40 people/minute

Service life

5000,000 times

Close and open time



0.6S

Input interface

Relay signal, 12V level signal,

Clear passage width



600mm

Work environment

Indoor and outdoor (shelter)

Number of led lamp



1pcs or 3 pcs

Model

RS716

WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY
Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 08025897223, 0818-116-0990 Email: info (AT) hiphensolutions.com
Web: www.hiphensolutions.com/products
We are Multi-Award Winning company in Technology Solutions,Access Control, Safety, Security and Automation Systems.
