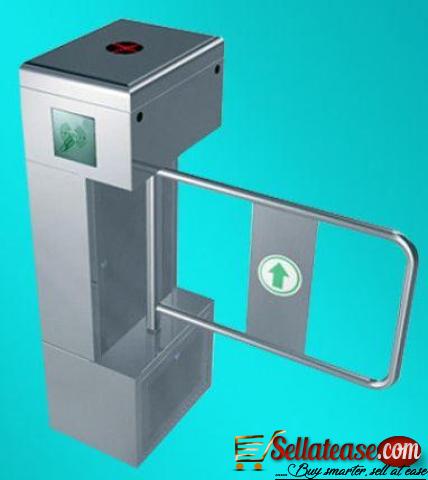

Turnstile Gate Road Barrier BY HIPHEN SOLUTIONS

Ad details
Popular used in many occassion, such as Govement office, enterprise, club, school, libruary, office building, railway-station, hotel, subway, scenic spot, entertainment, park, etc


Status Indication Allow passing through / Forbidden
Power Consumption 1. Paused: 120Watt/Lane; 2. Working state: 250Watt/Lane
Working Environment Indoor; Matching with rain frame for outdoor use
Service Life 10years, 3 millions continuous opening and closing of barrier panel
Communication Interface One RS232 interface, two Card reader signals (Passive), one Fire Alarm Interface
Drive Mode Motorized, electro mechanical Drive System, Photoelectric sensor
Contains Mechanism, Housing, Drive board, Power supply
Glass Width/ Height/ Thickness 250mm/ 650mm/ 10mm
Access Modes 1. Locked 2. Remote control by computer 3. Authorized
Net Weight Side door: 185kgs; Middle door: 235kgs
Dimension 800 × 320 × 1020 (mm)
Working State single or bi-directional, 16modes
Open/ Close Time 0.3/ 0.5 second
Maintenance Port 2units
Voltage Input AC 220V (adjustable)
Working Temperature -10°C-60°C
Noise ≤65dB
Lane Width 500-600mm
Humidity 5%-90%
Housing Material 304 stainless steel


WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY
Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 08025897223, 0818-116-0990 Email: info (AT) hiphensolutions.com
Web: www.hiphensolutions.com/products
We are Multi-Award Winning company in Technology Solutions,Access Control, Safety, Security and Automation Systems.
