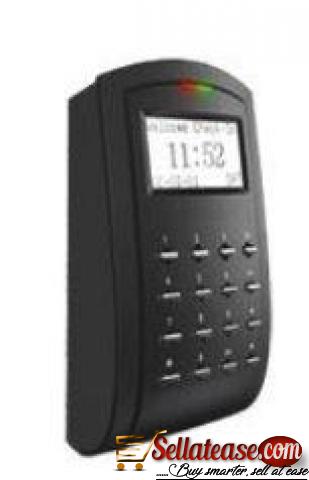

Waterproof ID Card Door Access Controller Entry Door Lock Control BY HIPHEN SOLUTIONS

Waterproof ID Card Door Access Controller Entry Door Lock Control BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Item: Door Access Control Interface: TCP/IP, USB Host
Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm Operating Temperature:: 0 ℃- 45 ℃
Operating Humidity:: 20%-80% Gross Weight:0.: 7KG
Product Description
Advanced Fingerprint access control and time attendance Terminal

Specifications



Optical sensor
Item Door Access Control
Interface TCP/IP, USB Host
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Certificates CE ,FCC, CCC
transportation DHL,EMS,FedEx
Warranty 2 years
standalone and network


Features:
1. Color TFT screen and built-in photo ID provide you vivid colorful life
2. Support voice prompt and keypad audio
3. Optional built-in Li-Battery for time attendance
4. External speaker plug port for scheduled bell ring
5. Optional ID/Mifare/HID card reader
6. Support WIFI/GPRS ,Wiegand in/out communication
7. Higher security with multi-identification and anti-passback function



Model

RS 103-1

LCD Screen

2.4 inch TFT (320*240) Color Screen

Fingerprint Sensor Resolution

500DPI (Optical sensor)

Hardware Platform

REALANDR ZDC2911

Algorithm Version

REALANDR RSFv5.1

CPU

Running Frequency: 200MHZ

Communication

TCP/IP, RS485, USB Memory Disk

User Capacity

1,000 (optional to 2,000 or 3,000)

Records Capacity

100,000

Software OS

XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)

Identification Time

< 1 S

Authentication Method

Fingerprint/ RFID Card (125Khz)(could customize Mifare card)/Password

Language

Chinese / English / Spanish/Portuguese/ German (could customize others)

Bell

Built-in timing bell(can connect to external timing bell)

Access Control Interface

Wiegand26/34, Door Lock, Siren, Release Button(can connect 2 groups), Doorbell, Door Sensor

Professional Access Function

Open door by multilevel verification, anti-pass back

Power

DC 12V/2A

FRR

<1%

FAR

<0.00001%

Operating Mode

Off-line/On-line

Authentication Mode

1:1, 1:N

Operating environment

Operating Temp: 0°C-50°C, Humidity:80%

Certificates

CE, Type Inspection Report of Chinese Police Product

Dimension(L*W*H)mm


Terminal - 181*91*36mm
Package – 246*164*71mm

Weight

Terminal – 0.48 Kg
Package – 0.812Kg



Specifications:
LCD display:3.5’’TFT color screen
Speaker: voice prompt(language can be selected)
Fingerprint capacity: 8000
Log capacity: 120,000
Verification speed(1:1)≤0.5s
Identification speed(1:N) ≤1s
FRR≤0.01%
FAR≤0.0001%
Communications:TCP/IP,RS232/485,USB,wiegand in/out, optional(WIFI, GPRS)
Attendance status: check in, check out, break in/ out, OT in/out
Operation temperature: 0 to 45 centigrade degrees
Operation humidity: 20% to 80%
Power: 110/220VAC~ 12VDC
Function support:T9 input, SMS, workcode, USB host, DST, log query, External speaker plug port, keypad audio, anti-pass back, built-in photo ID, webserver for A/C, scheduled bell.
Access control: built-in relay, with door sensor, alarm output, wired bell, door lock control,
Optional functions: ID/Mifare/HID card reader, USB reader, RIS, built-in Li-battery, printer, soap, 9 digits. Auto-status.
Waterproof ID Card Door Access Controller Entry Door Lock Control
