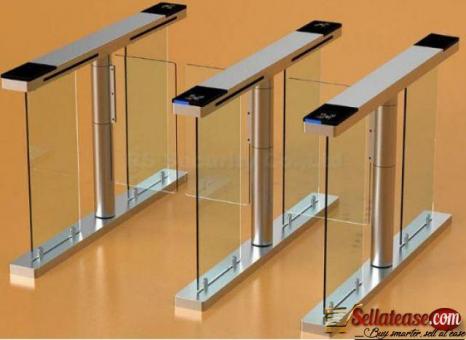

RFID Card Reader Fastlane Security Swing Gate Control System

RFID Card Reader Fastlane Security Swing Gate Control System
Ad details
Detailed Product Description
Application: Access Control System Swing Barrier Size: L 1600*W 130*H 1000 (mm)
Clear Passage Width: 600mm Work Environment: Indoor And Outdoor (shelter)-10~70°C
Power Supply: AC220V±10% , 50Hz/60Hz Transit Speed: 30-40 People/minute
RFID Card Reader Fastlane security swing gate Control System high speed
Product Introdution
Turnstile series: tripod turnstile, flap barrier,full hight turnstile, high speed swing turnstile,main gate designs, rfid reader high speed swing turnstile.
Fastlane turnstile RS 716-3 consist of mechanism, electric circuit, motor, wing, sensors, battery, led lamp, buzzer and so on.mainly used in factory, fitness club, prison, hotel lobby, school, port. With standard fire interface, arm drops dowm for evacuation even power is not cut off when fire alarm triggered. Memory can be set,swipe cards several times for group pass.
——————Product Parameter———————
SPECIFICATIONS
Material
304 stainless steel
Input voltage
110/220V±10%, 50/60±10%HZ
Size
1400*115*980mm
Net weight
50kg/unit
Arm width
280mm
Arm material
Acrylic
Sensor beams
4 pairs for 1 complete lane
Motor
24V DC brush
Communication interface
RS485
work humidity
90% No condensation
Transit speed
30-40 people/minute
MTBF
3000,000 times
Close and open time
0.6S
Input interface
Relay signal, 12V level signal,
Clear passage width
600mm
Work environment
Indoor and outdoor (shelter)-10~70°C
Number of led lamp
1 pcs or 3 pcs
Model
RS 716-3

——Our Feature——
∴Working method can be set by the buttons on the main panel
∴ Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
∴ Anti-illegal in, anti-intrusion, auto close for reverse direction.
∴ Anti-collision, gate closes when no valid signal is given.

∴Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
∴Gates can be synchronous
∴ Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
∴ Reset function by photocells, 4 or 6 pairs.
∴Anti-pinch function by photocells, 4 pairs
∴ Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
∴ One way or two way control
∴ Unit can be controlled and administered by remote control
∴ LED lamp indicator
Extensible functions
Counter:
⇒ LED counter display
⇒Casing and gate size can be lengthened
⇒ Speech reminder
⇒ Light, sound alarm

WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA OFFICES IN LAGOS, ABUJA,PORT HARCOURTAND BENIN CITY

Please CALL/WHATSAPP: 0807-779-7562, 08025897223

Email: [email protected]

We are Multi-Award Winning company in Technology Solutions, Access Control, Safety, Security and Automation Systems.
