Generator Wireless Remote Control Start and Off Set by hiphen

Generator Wireless Remote Control Start and Off Set by hiphen
Low cost controller designed to start/stop a generator manually and remotely
Suitable for 1-3 phase gasoline and diesel gensets
Designed for front panel mounting
Survives cranking dropouts
Generator protection, built-in alarms and warnings
This set is designed to wirelessly control any electric start generator having a remote start input or being specially adapted for this purpose.

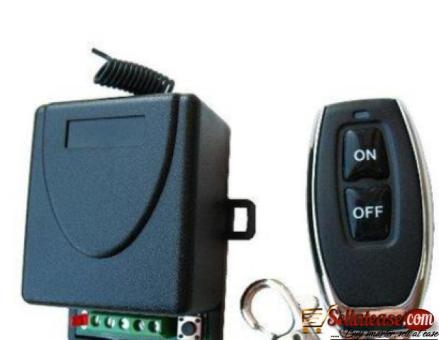

It includes a 2-button transmitter and a receiver with relayed normally open (NO) and normally closed (NC) contact groups. The set could remotely start and stop a generator on 10-100 meter distance depending on possible obstacles between transmitter and receiver directly connected to generator.
4PRO WT433-02 GENERATOR WIRELESS REMOTE CONTROL TRANSMITTER
TECHNICAL SPECIFICATIONS:
• Current consumption in active state: ≤12mA
• Working frequency: 433.92 MHZ
• Modulation: AM
• Transmit distance: 10-100m
• Dimensions: 61×30×12mm
4PRO WR433-01 GENERATOR WIRELESS REMOTE CONTROL RECEIVER
TECHNICAL SPECIFICATIONS:
• Voltage: 12V DC or 24V DC depending on configuration settings
• Working temperature: -30?-+70?
• Frequency: 433MHz
• Memory capacity: 30 learning/fixed code transmitters
• Standby current consumption: ≤9mA
• Relay current output rating: up to 5A
• Dimensions: 62×43.5×30mm
RECEIVER CONFIGURATION SETTINGS
To change the configuration jumper settings, please remove a receiver plastic case by loosening two screws from the device bottom side.
3S-Jumper (if closed): to activate the relay for 3 seconds only;
L-Jumper (if closed): to activate/deactivate the relay by the ON button only with both state fixed;
M-Jumper (if closed): to activate the relay by the ON button and deactivate by the OFF button;
If all above-mentioned jumpers are opened: to activate/deactivate the relay by the ON button only without fixed state;
12V/24V-Jumper: 12V DC (if closed) or 24V DC (opened).
Note: M-Jumper must be closed for the most of the generator controllers.
