Small Channel X Ray Baggage Scanner For Schools Hotels Subway

Small Channel X Ray Baggage Scanner For Schools Hotels Subway Station by Hiphen solution

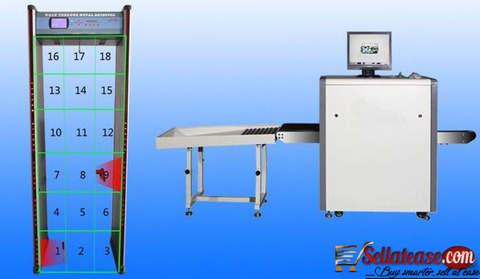

Small Channel X Ray Baggage Scanner for Schools / Hotels / Subway Station



X-ray Inspection System



Model: XST-5030C ------Typical Steel penetration 32mm



Designed to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband, XST-5030C X-ray inspection systems are ideal for screening everything from small packages to oddly shaped items and palletized loads.



Tunnel Size:500(Width) *300(Height)mm



Dimensions: 1830mm(Length) *810(Width)mm * 1480mm(Height)



Approximate Gross weight: 500kgs



XST-5030C X-ray Baggage scanner



General Specification



Tunnel Size 500(W)*300(H)mm



Conveyor Speed 0.22m/s



Conveyor Max Load 100kg



Dose per Inspection <2.9 μGy/h



Resolution <0.101mm Metal Wire



Penetration 32mm Steel



Film Safety Guarantee ISO1600 Film



X-ray Leakage <0.05 μGy/h (at a distance of 5cm From external housing)



X-ray Generator



● Generate direct: Bottom to up



● Generate anger: 80 degree



● Anode Voltage…………100~160Kv



● Anode power…………0.4 to 1.2mA



● Cooling / Duty Cycle………Oil Cooling /100%



Image System



X-ray Sensor………………L-Shaped Photodiode Array (monoenergetic) , 12bit Deep



Monitor……………………High Resolution Color, LCD Accord, 17 inch



Image Processing…………Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.



Image Grey Level……………4096



Image Max Resolution………1024 * 1280 pixel



Image Processing……………24bit for processing real time



Image storage……………Storage 60000 pictures in real time



Zones & Zoom……………1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation



Multi-energetic distinguish objects …………organic objects in orange, inorganic objects in blue, mixture in green



High-energy/low energy ………………………switch from high energy to low energy



Assist to detect drug and explosive powder



Installation Data



Operation temperature/Humidity…… 0℃-45℃/20%-95%(non-condensing)



Storage Temperature/Humidity……… -20℃-60℃/20%-95%(non-condensing)



Operation Power………………………220VAC(±10%)50±3Hz



Power Consumption……………………1.0 KW (max)
WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA



OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY



Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 0802-589-7223, 0818-116-0990



Email: info (AT) hiphensolutions.com



Web: www.hiphensolutions.com/products



We are Multi-Award Winning company in Technology Solutions, Access Control, Safety, Security and Automation Systems
