Weatherproof Walk Through Metal Detector by Hiphen solutions
Operating Temperatures



-4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing



Power



Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets UL, CE,FCC standards.



Weatherproofing / Foreign Object Protection Standards



Tamper-Proof



All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.



Construction



Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.



Control Outputs



Solid state switches (low voltage AC or DC) for operating external alarms and control devices.



Traffic Counter



Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.



Synchronization



Dual channels and DSP circuitry allow several XST-F8's to operate simultaneously in close proximity to one another.



Interference Suppression



Special Security King DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.



Alarms



Audible tone and volume adjustable. Bright LED visual alarm.



Target Pinpointing Lights



8 distinct zones are displayed with 2 independent columns of LED's located on exit side of XST-F8.



Pacing Lights



International symbols



Warranty



Limited 24 months, parts and labor



Features:



Easy Assembly



The XST-F08's modular design allows for a quick and simple assembly of its 4 (four) sub-assemblies using only 8 (eight) screws and 3 (three) internal electrical connections.



8 Distinct Pinpoint Detection Zones



The XST-F08 offers exclusive multiple target pinpointing with 8 distinct zones for full target coverage on the left, center and right side of the body from head to toe.



Entry Pacing Lights



Smooth, efficient traffic flow with easy-to-view, eye-level pacing lights with international "wait" and "proceed" symbols on the entrance side of each panel.

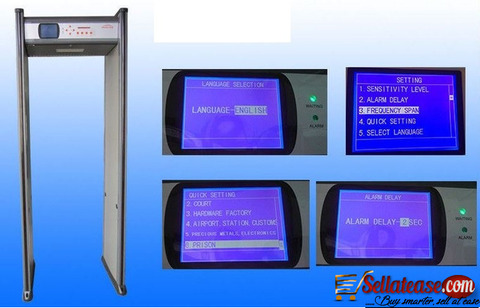

Overhead Control Unit



LCD Display, alarm lights, LED bar graphs and control touchpads plus all wiring, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and external control box.



Multi-dimensional Coil Design



The XST-F08's exclusive multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation.



Audible and Visual Alarms



Audible alarm and Visual LED lights signal when a target has been detected.
