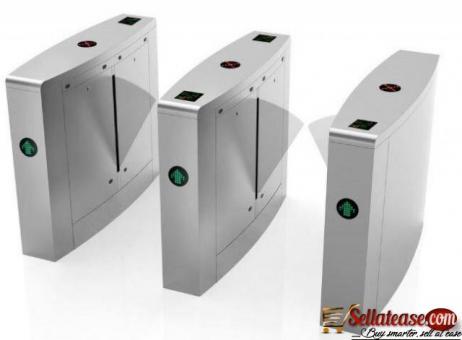

2 Channels Flap Barrier Gate Automatic Systems Turnstiles IR Sensor BY HIPHEN SOLUTIONS

2 Channels Flap Barrier Gate Automatic Systems Turnstiles IR Sensor BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Size: 1200*300*990mm Material: 304 Stainless Steel
Wing Color: White (Optional) Series: Flap Barrier
Product Name: Right Angle Flap Barrier Chassis Thickness: 1.5-2.0mm
2 Channels Flap Barrier Gate automatic systems turnstiles IR Sensor Pedestrian Gate




Quick Detail:



Product Name: IR Sensor Control Flap Barrier



Model: RS 188



security gate,tripod turnstie,flap gate,parking system



Material: 304 stainless steel



Size: 1400x300x990mm



Bi-directional access control



Color: silver and red



Application: custom, port, airport,



Brand Name: RS Security







Description:





The double wing gate is designed for places that requires wide passage access control, it is for



wheelchair or big luggage , the max lane width up to 900mm.



The speed gate barriers are designed to work in a normally closed mode and retract inside the



pedestal after a valid card has been presented to allow the authorized user to pass. The fast moving



close behind the authorized person to deter tailgaters.





Features





Bidirectional control, by authorized card or biometric identifications, push button and so on



Can be integrated with all kinds of access control systems,



Flow direction guide with high bright led lamp



Anti-punch, the barrier will not close if it detects people inside the passageway



Anti-tailgating, it allows only one person to pass for an authorized card presented.



Anti-panic, when power off, the barrier will open for people to go through.



Normal close or normal open (for group pass)



Close and open by remote control



Card reading memory function, the user can set multiple time card reading passing or single time



card reading passing



Failure detection and alarm functions;





Optional features





Counter:



Voice speech



Remote control





Applications:





High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.





Traffic type



2 Channels Flap Barrier Gate Automatic Systems Turnstiles IR Sensor Pedestrian Gate2 Channels Flap Barrier Gate Automatic Systems Turnstiles IR Sensor Pedestrian Gate2 Channels Flap Barrier Gate Automatic Systems Turnstiles IR Sensor Pedestrian Gate2 Channels Flap Barrier Gate Automatic Systems Turnstiles IR Sensor Pedestrian Gate







Specification





Material



304 stainless steel

Input voltage

220V AC220±10%

Size



1400x300x990mm

Arm width

400m

Net weight



102kg/unit

Arm material

Acrylic or soft arm

Motor



24V DC brush

Top Cover

Acrylic or stainless steel

Communication



interface



RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed



30-40 people/minute

Service life

5000,000 times

Close and open time



0.6S

Input interface

Relay signal, 12V level



signal,

Clear passage width



900mm

Work environment

Indoor and outdoor



(shelter)

Number of led lamp

3 pcs

Model

RS 118

WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY
Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 08025897223, 0818-116-0990 Email: info (AT) hiphensolutions.com
Web: www.hiphensolutions.com/products
We are Multi-Award Winning company in Technology Solutions,Access Control, Safety, Security and Automation Systems.
