Mechaninical Structure Flap Barrier Gate Compatible IC ID Card BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Material: 304 Stainless Steel Wing Color: Transparent
Size: 1200*280*990mm Series: Flap Barrier
Protection Grade:: IP44

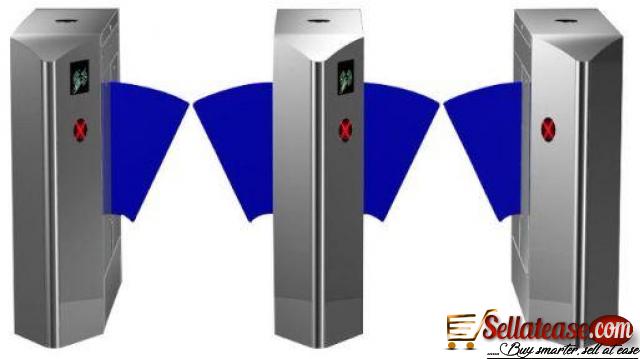

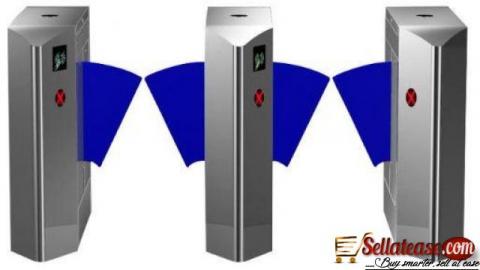

Mechaninical Structure Flap Barrier Gate Compatible IC ID Card Turnstile


1. Bidirectional control speed gate
2. Quick Detail:



Product Name:Waterproof Flap Barrier



Brand Name: RS Security



Model Number: RS188A



Application: Bank, Office building, company, fitness club, prison, hotel lobby, school



Material: 304 stainless steel



Size: 1400x300x990mm



Bi-directional access control





Description:



The flap gate is usually used in bank lobby, office building, fitness club, school, it prevents



unauthorized people to enter the restricted areas,



The speed gate barriers are designed to work in a normally closed mode and retract inside the



pedestal after a valid card has been presented to allow the authorized user to pass. The fast



moving close behind the authorized person to deter tailgaters.





Features





l Bidirectional control, by authorized card or biometric identifications, push button and so on



l Can be integrated with all kinds of access control systems,



l Flow direction guide with high bright led lamp



l Anti-punch, the barrier will not close if it detects people inside the passageway



l Anti-tailgating, it allows only one person to pass for an authorized card presented.



l Anti-panic, when power off, the barrier will open for people to go through.



l Normal close or normal open (for group pass)



l Close and open by remote control



l Card reading memory function, the user can set multiple time card reading passing or single



time card reading passing



l Failure detection and alarm functions;





Optional features



Counter:



Voice speech



Remote control





Applications:



High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.





Specification





Material



304 stainless steel

Input voltage

220V AC220±10%

Size



1400x300x990mm

Arm width

265m

Net weight



102kg/unit

Arm material

Acrylic or soft arm

Motor



24V DC brush

Top Cover

Acrylic or stainless steel

Communication



interface



RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed



30-40 people/minute

Service life

3000,000 times

Close and open time



0.6S

Input interface

Relay signal, 12V level signal,

Clear passage width

600mm

Work environment

Indoor and outdoor (shelter)

Number of led lamp



1pcs or 3 pcs

Model

RS188A


WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY
Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 08025897223, 0818-116-0990 Email: info (AT) hiphensolutions.com
Web: www.hiphensolutions.com/products
We are Multi-Award Winning company in Technology Solutions,Access Control, Safety, Security and Automation Systems.
