Smart Turnstile Supermarket Swing Gate, Automatic Swing Barrier Turnstiles

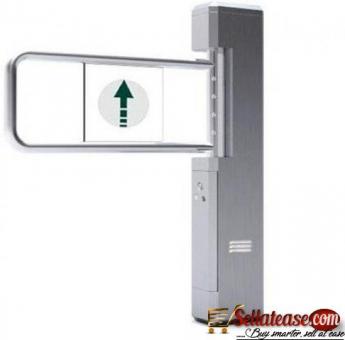

Product Name: Vertical Right Angle Swing Gate Turnstile​



model:RS 216



Size:380*280*990mm



low noise



high security



waterproof



Turnstile security gate traffic barrier boom door parking system waist height turnstile swing gate

falp gate speed gate drop arm gate qutoatice turnstile estacionamieto access control system

tripod turnstile security turnstile boom door torno tripode



Functions and features



1. Well in design, rustproof, durable and can resist external destroy.

2. Self-inspection and alarm.

3. Clutch transmission mechanical system, durable, no noise and long life.

4. Easily integrated with any type of readers such as IC, ID, bar code and even magnetic card.

5. Bi-directional passing or single way passing.

6. Adjustable normally open or normally closed, in order to meet the requirements of the different



venues.

7. Arm close delay function, after a valid pass, arms close in 10 seconds. (adjustable, from 1-60s)

8. Anti-rush function: If there is no open single, arm will be holding tightly

9. Valid lock function can allow one passage at one time

10. Optional LED Counting and Direction indicating

11. Anti-clipping function. During its reposition, if arm meets any obstacle, arm will get back



automatically or stop working for a while.

12. It will lock automatically if passage through turnstile is not completed within pre-set time, the



setting-time can be adjusted via parameter change.





Turnstile Parameters







Model No.



RS 216


Material



304# stainless steel, 1.5mm thick


Contains



Mechanism, Housing, Driver board, power supply


Power supply



AC220V±10V ,50Hz / AC110V±10V ,60Hz


Power consumption



Working state:<60 Watt


Input Interface





+12V electrical signal or impulse signal with width more than



100ms, drive current >10mA







Communication Interface





RS485 standard, communication distance ≤ 1200m




Access Mode




Automatic (when power off, arms open automatically, while



power on later, arms close automatically )





Following Speed

:

30 persons/min (By Card)


Dimension



380*280*1000mm


Lane width



<=1200mm


Arm length



600mm


Net weight



40kg


Work Environment





indoor or outdoor (shelter)


temperature: -10~ 60


Relative humidity: ≤ 95%, non-condensing

WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY
Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 08025897223, 0818-116-0990 Email: info (AT) hiphensolutions.com
Web: www.hiphensolutions.com/products
We are Multi-Award Winning company in Technology Solutions,Access Control, Safety, Security and Automation Systems.
