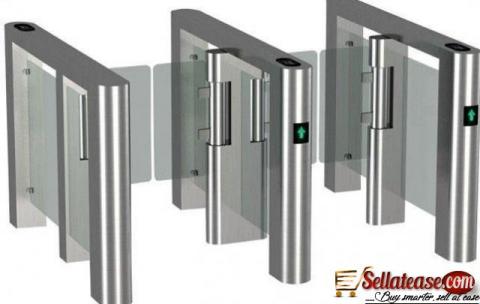

Automatic Swing Gate Bi-direction IR Sensor Barrier Turnstile BY HIPHEN SOLUTIONS

Automatic Swing Gate Bi-direction IR Sensor Barrier Turnstile BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Series: Swing Gate Material: 304 Or 316 Stainless Steel
Chassis Thickness: 1.5-2.0mm Size: 1200*280*990mm
Protection Grade:: IP44 Colors:: Bright Silver Grey And Black, Or Custom
Automatic Supermarket Swing Gate Bi-Direction IR Sensor Barrier Turnstile


Product Name: Swing gate turnstile



Model: RS 716



Anti pinic



Anti rust



Anti proof



High security



Luxury high grade bright surface swing turnstile RS Security-B236 is composed of case



,toughened glass ,control system ,infrared sensor ,and control equipment, the advantage of Luxury



high grade bright surface swing turnstile is open the gate quickly, quick gate closing, can’t open



without senor , mechanical structure can not be stuck. Swing turnstile RS Security-B236 can mount



with various reader device and use the received relay’s switch signal to work. Swing turnstile RS



Security-B236 has drive circuit,LED lights; instructions. Drive circuit board is the bridge between



device controlling and turnstile ,select a group of normally open output terminals from the



controller’s relay output (access control, time attendance, ticketing, fingerprint and other main



control equipment), press the "wiring diagram" in connection.it also can manage directly through



the remote control and management by computer management.





Speed Gate Specifications:





1

Power



AC220C±10%V,50±10%HZ

2

Operating Temperature



-15°C-75°C

3

Relative Humidity



≤95%, No Densation

4

Shutting Time



1 S

5

Communication Distance



≤1500M

6

Passing Speed



40 Persons/min

7

Arm Lenght



600mm~900mm

8

Motor



200W/24V

9

Arm Holder Force



30 Kg

10

Input Connection



+12V Level Signal or Pulse Wide>100ms DC12V pulse,



Current>10Ma

11

Communication Connection



RS485 Communication



12

Material



SUS304 ,202,or Carbon Steel Powder Coating etc under



choice

13

Working life





4 million times



14

Operation Place

Subway Station, Hoverport,Tourism Sports,Exhibition,



Swimming Hall,Residence Area,Enterprise’s Entrance and



Exit Attendance,Gateway Guard,Charge



Management,Special Access Control






Speed Turnstile Function:





² LED lamp indicator



² One way or two way control



² Working method can be set by the buttons on the main panel



² Anti-illegal in, anti-intrusion, auto close for reverse direction.



² Anti-collision, gate closes when no valid signal is given.



² Gates can be synchronous



² Reset function by photocells, 4 or 6 pairs.² Anti-pinch function by photocells, 4 pairs



² Unit can be controlled and administered by remote control



² Anti-pinch, anti-collision. If there is block during return of gate, motor stops working



automatically. Reset again after a default delay, the force 2Kg.



² Compatible with Access control system, consumption system, ESD system, E-ticket system and



so on.



² Protection functions for gate, gate open to prevent motor from being damaged if there is outer



force collision.² Auto-reset. If not go through in a preset time, pass right would be cancelled



automatically. (1-60s adjustable), default time is 10s

WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY
Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 08025897223, 0818-116-0990 Email: info (AT) hiphensolutions.com
Web: www.hiphensolutions.com/products
We are Multi-Award Winning company in Technology Solutions,Access Control, Safety, Security and Automation Systems.
