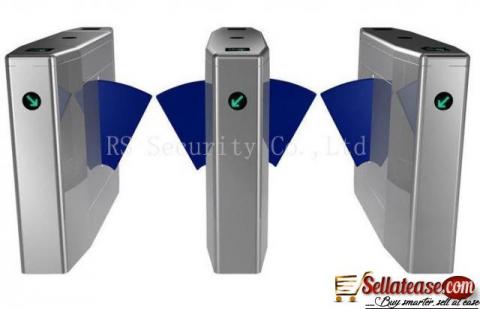

Bi - Directional Flap Barrier Gate BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Communication Interface: RS485, TCP/IP Opening Time:: 0.5s
Humidity: 5%-90% Working State: Single/ Bi-directional
Function: Emergency-Escape Function Noise Level:: ≤50db
304 Stainless Steel Flap Barrier Gate RFID Barcode Reader Turnstile
Flap Turnstile Gate RS 988
Access Control, Emergency-Escape Function

Power Input AC220V (10% more or less), 50HZ (4% more or less)

Material: Stainless Steel

Thick: 1.5mm

Packaging:Wooden Case


Functions
Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
A direction indicator, showed that pedestrian access to the current status of, and guide pedestians correct and smooth passage
Didplay has been in use for statistics and numbers
With voice and strobe light alerts
A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestians smooth and the prevention of the channel following
Operating Modes
Single passage in the set direction
Bi-directional single passage
Free passage in the set direction
Always free or locked
Materials
Housing: Made in metal sheet and painted with 20/10, or in stainless steel ALSL 304 o AISI316
Barrier swings-Plastic plate, thoughened glass, stainless steel frame
Lid(optional)— Stainless steel or artificial stone(black/brown)
Colours & Finishes
High quality power coating plus lacquered finish
Dark grey colour high quality power coating plus lacquered finish
Sandpaper powder coating with pearl mica effect
Mechanism
Heavy-duty design for 24 hours continous application
Heavy duty pull type
Indoor or outdoor application
High durability with industrial parts
All the running is quiet without any noise and shock
Communication
Dry contact relay with 12 volt or 24 volt pulse
RS485 or TCP-IP communication with computer
High durability with industrial parts
All running is quiet without any noise & shock
Motor
Three million times or above test for motor
Overheat and overload dual protection for motor




Technical parameters for mechanical turnstiles

Housing material

domestic standard 304# stainless steel

Working voltage

AC220±10%V 50±10%HZ

Drive motor

DC24V brush motor

Size

1500mm (L) * 300mm (W) * 1000mm (H)

Retractable arm length

260 mm

Passage width

≤600mm

Direction

single or bi-directional (optional)

Working environment

indoor/outdoor (with a tent over) -10°C~70°C

Relative humidity

<=90% coagulation free

Time of opening/closing

0.6 second

Pass speed

40 persons/min (open), 25-30 persons/min (closed)

Time to work after power on

3 seconds

Reset time after break down

10 seconds

Normal running life

3 million

Communication interface

standard RS485 interface, distance ≤1200m

Input interface

+12V level signal or pulse width>100ms 12V pulse,
drive current>10mA

WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA
OFFICES IN LAGOS, ABUJA, PORT HARCOURT AND BENIN CITY
Please CALL/WHATSAPP: 0703-514-6988, 0807-779-7562, 08025897223, 0818-116-0990 Email: info (AT) hiphensolutions.com
Web: www.hiphensolutions.com/products
We are Multi-Award Winning company in Technology Solutions,Access Control, Safety, Security and Automation Systems.
