Detailed Product Description
Material: 304 Stainless Steel Power Supply: AC220V±10%,50HZ
Max Lane Width: 600mm Flap Opening/closing Time: 0.2s
Transit Speed: 35 Persons/min Power Voltage: Indoor/outdoor (Shelter)

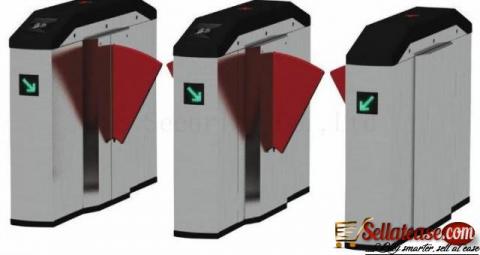

Bridge Type turnstile entry systems



Quick Detail:

product name double wing flap barrier gate

Brand Name: RS Security

Model Number: RS788

Application: custom, port, airport,

Material: 304 stainless steel

Size: 1400x300x990mm

Bi-directional access control

pedestrian turnstile,parking system,access control,flap gate,barrier gate



Description:



The double wing gate is designed for places that requires wide passage access control, it is for wheelchair or big luggage , the max lane width up to 900mm.
The speed gate barriers are designed to work in a normally closed mode and retract inside the pedestal after a valid card has been presented to allow the authorized user to pass. The fast moving close behind the authorized person to deter tailgaters.




Features



a.elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.
b.Equipped with standard input/output signal interface, can be integrated with all types of access control panel,offering complete entrance control solutions.
c. Malfunction self-detection, which is easy for operation and maintenance.
d.Operational mode can be set up through the built-in menu on the control panel.
e.Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
f. Anti-collision function, the flaps will stay close if not receiving the open signal.
g.Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.
h.Flaps reset to close position when power resume.
i.Flaps reset to lock position when access time expire.
j.Prevents Invalid/Tailgate/Wrong direction access.
k.LED Array indication for access granted/denied.
l. Compatible with diverse access control devices.
m. Pedestrian flow directions can be single or double directions.
n. RS485 socket is available to connect the computer.



Extended Functions:


1.LED indicator light
2.Box house can lengthen, telescopic arm color can choose
3.Infrared logical judgment function (you can choose 7 pairs or 9 pairs Infrared)
4.Voice Prompt Function
5. Normally open or closed can be adjust to meet the requirements of the different place.
6.Sound and light alarm prompt functions
7.Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately



Applications:



High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.





Traffic type



Bridge Type Turnstile Entry Systems CE Approved / Glass Wing Fast Speed TurnstileBridge Type Turnstile Entry Systems CE Approved / Glass Wing Fast Speed TurnstileBridge Type Turnstile Entry Systems CE Approved / Glass Wing Fast Speed TurnstileBridge Type Turnstile Entry Systems CE Approved / Glass Wing Fast Speed Turnstile







Specification



Material

304 stainless steel

Input voltage

220V AC220±10%

Size

1400x300x990mm

Arm width

400m

Net weight

102kg/unit

Arm material

Acrylic or soft arm

Motor

24V DC brush

Top Cover

Acrylic or stainless steel

Communication interface

RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed

30-40 people/minute

Service life

5000,000 times

Close and open time

0.6S

Input interface

Relay signal, 12V level signal,

Clear passage width

900mm

Work environment

Indoor and outdoor (shelter)

Number of led lamp

3 pcs

Model

RS788
