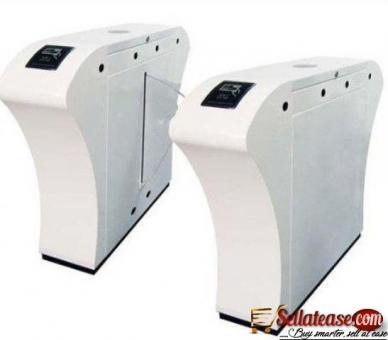

Flexible IR Sensor Turnstile Security Systems Gate Barrier BY HIPHEN SOLUTIONS

Ad details
Description:



RS Security flap barriers are designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
The double wing gate is designed for places that requires wide passage access control, it is for wheelchair or big luggage , the max lane width up to 900mm.
The speed gate barriers are designed to work in a normally closed mode and retract inside the pedestal after a valid card has been presented to allow the authorized user to pass. The fast moving close behind the authorized person to deter tailgaters.




Features



Provide normally open / normally close to satisfy management request.
Compatible with card readers, bar code readers, biometric readers, push button...
Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.
Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.
Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.
Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
(Optional) Support gate open while power failure and recover N/C mode after power on.
(Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
(Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.
One direction or bi-direction is optional.




Applications:



High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.







Specification



Material

304 stainless steel

Input voltage

220V AC220±10%

Size

1400x300x990mm

Arm width

400m

Net weight

102kg/unit

Arm material

Acrylic or soft arm

Motor

24V DC brush

Top Cover

Acrylic or stainless steel

Communication interface

RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed

30-40 people/minute

Service life

5000,000 times

Close and open time

0.6S

Input interface

Relay signal, 12V level signal,

Clear passage width

900mm

Work environment

Indoor and outdoor (shelter)

Number of led lamp

3 pcs

Model

RS988a
