Full Automatic Swing Barrier & Fast Speed Gate BY HIPHEN SOLUTIONS

Ad details

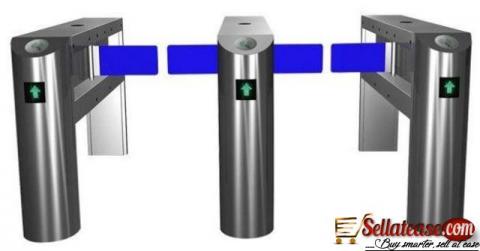

Product Name:Dual Passage Swing Gate Turnstile

Other Name;Turnstile,Access Control,Tripod Turnstile,Paring system

Model:RS 416



Specifications

1) access Control Swing Turnstile

2) 304 stainless steel

3) Self-report fault

4) Pass indication

5) Double anti-pinch

6) RS 416 Access control swing turnstile


1. Housing Material: bright 304# stainless steel, 2mm thick, laser-cut smooth sides.

2. Built-in card-swiping faceplate, 5mm thick, seamless combination with housing.

3. Single/dual directional card-swiping function, wtih swiping indicators and direction indicator.

4. Clear transparet acrylic barrier, 20mm thick, with night light.

5. Passing China National 5-million Rotation Inspection.

6. With sound and light alarms for below abnormal situations: Anti-tailing, anti-intruding, anti-reverse-passage.

7. With 2 check doors, 2 watertight boxes.

8. 6 pairs of hidden infrared fences preventing strong light and ultraviolet light.

9. Protection level: IP65, airproof, waterproof,anti-dust, for outdoor and indoor use.

10. Very easy to integrate the readers and writers of ID, IC, RFID, Fingerprint, barcode, card collectors,cellphone 2D codes, facial recognition instrument, etc.



Functions and features:
1.Self-report fault, convenient for using and maintain.
2.Pass indication function.
3.Double anti-pinch(mechanical and infrared induction) protection
4.Barrier gate will automatically open when power failures, and reset when power on, meet the fire safety requirements
5.Barrier gate will automatically lock following with sound alarm when has illegal invasion
6.In and out mode can be adjusted, controlled or free; closing barrier mode can be adjusted, infrared induction closing or delay closing(time can be adjusted)
7.Has remote control switch, meet the special needs of customer
8.Standard and uniform external electric interface, can be connected with various kinds of read and write devices, great for system integration.
9.Can be connected with access control system, consumption system, electrical ticket system, biological recognition system and other systems



Parameter



Body material 304 stainless steel
Dimensions 1200 x 300 x 990mm
Swing arm length <900m(single)
Swing angle 0-180°
Pass ways single directional and bi-directional
Pass speed 40 people/min(normal open) ; 25-30 people/min(normal close)
External connecting power AC220V
Indicator light voltage DC12V
Environmental temperature -15°C to 75°C
Relative humidity <95%, no condensation
Communication interface RS485
Input interface switch signal(relay signal)
Drive motor brush type motor DC24V
Bar operation time
about 2S






Full Automatic Swing Barrier&Fast Speed Gate Full Automatic Swing Turnstile
