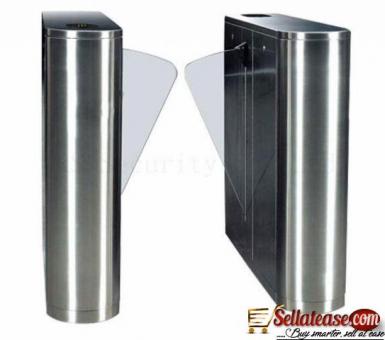

Retractable Flap Barrier Gate Turnstile BY HIPHEN SOLUTIONS

Retractable Flap Barrier Gate Turnstile BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Product Name: RS Security Working Temperature: -10~70degree
Material: 304 Or 316 Stainless Steel Height: 980mm
Warranty: 12 Months Size: 1500*300*980mm
Retractable Flap Barrier Gate Turnstile Painted Intelligent for Access




Series:Flap Gate
Product Name:Noiseless Flap Gate
Model:RS 588
Size : 1500*300*980mm
Direction: Bi-direction
Material:304 or 316 Stainless Steel
Protection grade: IP54
Chassis Thickness 1.5-2.0mm
Warranty:12 months
Height:980mm
Working temperature:-10~ +70 degree

Product Discription

Noiseless Flap Gate RS 588 ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.


No.
Parameter
Value
1

Casing material

China standard 304#SS

2

Work voltage

AC220V±10% 50HZ±10%

3

Drive motor

DC 24V brush motor

4

Dimension

1200*300*980MM

5

Wing length

260mm

6

Max lane width

600MM

7

Pass direction

one or bi-directional

8

Work environment

Indoor or Outdoor ( Shed house needed)

9

Work temperature

-10℃～70℃

10

Relative humidity

≤90%, no condensation

11

Barrier open and close time

0.6S

12

Transit speed

40 People/minute normal open , 25-30 people/minute normal close

13

time needed for running into work state when power on



14

Auto reset time when there is breakdown

10s

15

Normal work life

3000000 times

16

Communication interface

RS485,

17

Input interface

relay signal, 12 V level signal, 12V pulse signal with pulse width ＞100ms, drive current ＞10mA

18 Model RS 588


Function

Features:
1. Stainless steel housing, novel and beautiful design, durable and stable mechanism.
2. Waterproof, sunscreen, anti-temperature, anti-cold.Suitable to used outdoor.
3. Led Indicator Light : Red and green light prompt the passing information.
4. with a variety of operating modes you can choose, you can set a one-way or two-way control.
5. Can integrated with RFID , magnetic card, bar code card, and other control equipment.
6. Fire safety function: When out of power , arm will automatically drop down , keep channel open.
7. Scour protection function : The arm will be locked before received the open signal.
8. Can work with different systems , such as access control system , ticketing system , ESD system , consumption system , construction system , etc.
9. Automatic reset function : Passenger did not pass within the stipulated time , the system will automatically cancel the access permissions of the user . (Default 5 seconds)
Optional Function:
1.Stainless steel Material :316 stainless.
2.Stainless steel surface treatment : Satin treatment , brush / hairline finish , mirror finish.
3. The turnstile controller with counting function, LED digital display function.
4. Sound, light alarm function: with trespassing, trailing alarm.
5.Operation Mechanism: Semi automatic Mechanism / fully automatic Mechanism / Manual Type.
