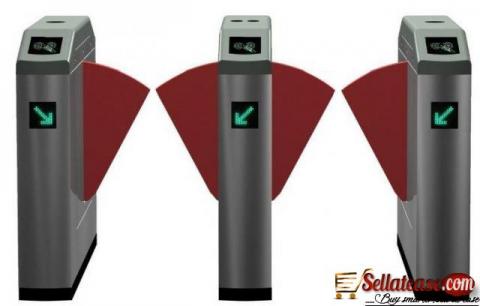

Superior Flap Barrier Gate Turnstile BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Series: Flap Barrier Warranty: 12 Months
Application: Multi-application Size: 1200*280*990mm
Protection Grade:: IP44 Passageway: 550mm
Superior Flap Barrier Gate , Remote Control turnstile security systems
Series:Flap Gate
Product Name:IP 54 Smart Flap Gate
IP 54 Smart Flap Gate Model:RS 688
IP 54 Smart Flap Gate Size 1200*300*980mm
IP 54 Smart Flap Gate Direction: Bi-direction
IP 54 Smart Flap Gate Material:304 or 316 Stainless Steel
IP 54 Smart Flap Gate Protection grade: IP54
IP 54 Smart Flap Gate Chassis Thickness 1.5-2.0mm

Product Discription

IP 54 Smart Flap Gate RS 688 ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.


No.
Parameter
Value
1

Casing material

China standard 304#SS

2

Work voltage

AC220V±10% 50HZ±10%

3

Drive motor

DC 24V brush motor

4

Dimension

1200*300*980MM

5

Wing length

260mm

6

Max lane width

600MM

7

Pass direction

one or bi-directional

8

Work environment

Indoor or Outdoor ( Shed house needed)

9

Work temperature

-10℃～70℃

10

Relative humidity

≤90%, no condensation

11

Barrier open and close time

0.6S

12

Transit speed

40 People/minute normal open , 25-30 people/minute normal close

13

time needed for running into work state when power on



14

Auto reset time when there is breakdown

10s

15

Normal work life

3000000 times

16

Communication interface

RS485,

17

Input interface

relay signal, 12 V level signal, 12V pulse signal with pulse width ＞100ms, drive current ＞10mA

18 Model RS 688


Function

1.With function of self-examine and alarm, it is convenient for maintenance and use.
2.Being able to program running status by the small keyboard in the main board.
3.Preventing pedestrians from being nipped and from hurt.
4.Light and sound alarm funtion including the illegal in and the tail.
5.Arms are automatically locked untill opening signal is received.
6.Arms synchronization (adjustable).
7.Automatically reset function: It will automatically lock if the pedestrian hasn’t passed through the channel in the pre-set time after the opening. The passing time is adjustable.
8.Automatically open the gate when power off and automatically close when power on
9.Several card readers are attachable.
10.One direction or bi-direction are optional.
11.It can be directly controlled and managed by remote control.
Extendable function:
1 Counter(optional)
2 The length of the housing (length 1.2m, 1.4m, or 1.6m are optional )
3 The material of flap arm (acrylic glass, resin, PVC etc. optional)
4 The colour of the flap arm (red, blue, yellow, colourless, etc.)
5 Wings close automatically when a person is authorised in a direction while another passenger in the other direction wants to pass without reading card.
