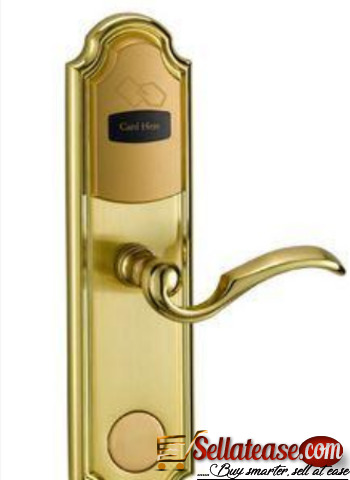

Security Card Lock RFID System HIPHEN SOLUTION SERVICES LTD.

Technical Parameters
1Reliability: No error arising in 1,000 normal consecutive card-insertion operations.
2,Static power consumption: < 15μA.
3,Dynamic power consumption: 120~180mA.
4,Operating voltage: Four 6V high-energy alkaline batteries
5,Validity of Battery: Normally 8~12 months.
6,Low-voltage alarm: When the voltage is lower than 4.8V, it is still available for opening the door for dozens of times.
7,Open in Emergency: Under no control. The door can be opened even if the dead bolt is locked.
8,Time of opening: Once the handle is pressed, you are allowed to open the door for one time. The door will be locked automatically if it remains locked for 10s.
9,Reliability: No error arising in 1,000 normal consecutive card-insertion operations.
10,Unlocking records: The latest 350 pieces of records will be saved in the lock.
Dynamic power consumption: 120~180mA.
11,Guaranteed condition: If any invalid card is read, the circuit in the lock can still function properly with no damage.
12,Mechanical key: The mechanical emergency unlocking mechanism with a fully independent drive system is provided to ensure the door lock can still be opened properly in an emergency.
13,Installation requirement: The door’s thickness should range from 38mm to 85mm. If there is any ornamental pattern on the surface of the door, the distance from the ornamental pattern to the edge of the door should be no less than 105mm.
14,Operating temperature: -20℃~+55℃ (-35℃~+85℃ under special conditions).
15,Interface function: The dynamic link library provided can be integrated with any domestic or overseas hotel management system to share the information resources of hotels.
16, Door opening direction: Push leftward or rightward, pull leftward or rightward to open the door.

WE CAN SUPPLY AND INSTALL IN ANYWHERE IN NIGERIA OFFICES IN LAGOS, ABUJA,PORT HARCOURTAND BENIN CITY

Please CALL/WHATSAPP: 0807-779-7562, 08025897223

Email: marketing@hiphensolutions.com

We are Multi-Award Winning company in Technology Solutions, Access Control, Safety, Security and Automation Systems.
