Electric Direct Flap Retractable Barrier Gate BY HIPHEN SOLUTIONS

Electric Direct Flap Retractable Barrier Gate
Ad details
Quick Detail:

Opening Pattern: Automatic

Model Number: RS988b

Application: custom, port, airport,

Material: 304 stainless steel

Size: 1400x300x990mm

Bi-directional access control

Description:

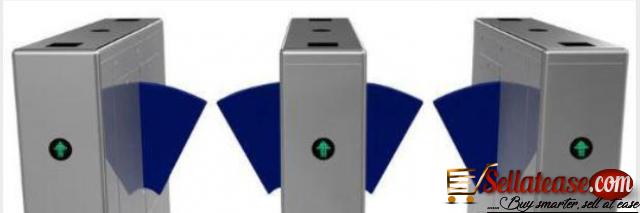

The double wing gate is designed for places that requires wide passage access control, it is for wheelchair or big luggage , the max lane width up to 900mm.
The speed gate barriers are designed to work in a normally closed mode and retract inside the pedestal after a valid card has been presented to allow the authorized user to pass. The fast moving close behind the authorized person to deter tailgaters.

Features

Bidirectional control, by authorized card or biometric identifications, push button and so on
Can be integrated with all kinds of access control systems,
Flow direction guide with high bright led lamp
Anti-punch, the barrier will not close if it detects people inside the passageway
Anti-tailgating, it allows only one person to pass for an authorized card presented.
Anti-panic, when power off, the barrier will open for people to go through.
Normal close or normal open (for group pass)
Close and open by remote control
Card reading memory function, the user can set multiple time card reading passing or single time card reading passing
Failure detection and alarm functions;

Optional features

Counter:

Voice speech

Remote control

Applications:

High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.

Specification

Material

304 stainless steel

Input voltage

220V AC220±10%

Size

1400x300x990mm

Arm width

400m

Net weight

102kg/unit

Arm material

Acrylic or soft arm

Motor

24V DC brush

Top Cover

Acrylic or stainless steel

Communication interface

RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed

30-40 people/minute

Service life

5000,000 times

Close and open time

0.6S

Input interface

Relay signal, 12V level signal,

Clear passage width

900mm

Work environment

Indoor and outdoor (shelter)

Number of led lamp

3 pcs

Model

RS988b
