Bidirectional Automatic Retractable Barrier Gate BY HIPHEN SOLUTIONS

Ad details
Model Number: RS188A

Application: Bank, Office building, company, fitness club, prison, hotel lobby, school

Material: 304 stainless steel

Size: 1400x300x990mm

Bi-directional access control





Description:

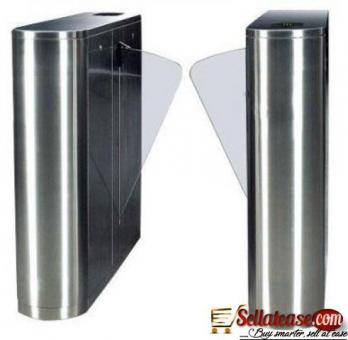

The flap gate is usually used in bank lobby, office building, fitness club, school, it prevents unauthorized people to enter the restricted areas,
The speed gate barriers are designed to work in a normally closed mode and retract inside the pedestal after a valid card has been presented to allow the authorized user to pass. The fast moving close behind the authorized person to deter tailgaters.




Features



Bidirectional control, by authorized card or biometric identifications, push button and so on
Can be integrated with all kinds of access control systems,
Flow direction guide with high bright led lamp
Anti-punch, the barrier will not close if it detects people inside the passageway
Anti-tailgating, it allows only one person to pass for an authorized card presented.
Anti-panic, when power off, the barrier will open for people to go through.
Normal close or normal open (for group pass)
Close and open by remote control
Card reading memory function, the user can set multiple time card reading passing or single time card reading passing
Failure detection and alarm functions;




Optional features



Counter:

Voice speech

Remote control





Applications:



High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.







Specification



Material

304 stainless steel

Input voltage

220V AC220±10%

Size

1400x300x990mm

Arm width

265m

Net weight

102kg/unit

Arm material

Acrylic or soft arm

Motor

24V DC brush

Top Cover

Acrylic or stainless steel

Communication interface

RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed

30-40 people/minute

Service life

3000,000 times

Close and open time

0.6S

Input interface

Relay signal, 12V level signal,

Clear passage width

600mm

Work environment

Indoor and outdoor (shelter)

Number of led lamp

1pcs or 3 pcs

Model

RS188A
