Stainless Steel Hydraulic Retractable Barrier Gate Bollards BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Material: A3 Steel,anti-rust Paint Color: red Blue Green Yellow Silver
Weight: 220KG Height: 1.15m
Size: 1.0x1.25x1.2m,1.2x1.3x1.3m Application: Concert, Outdoor And Indoor Performance And Shows, Exhibition Etc

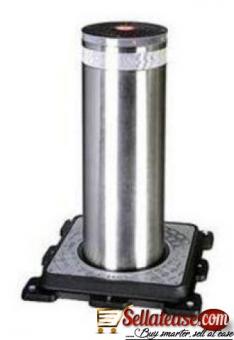

Stainless Steel Hydraulic Retractable Barrier Gate Bollards For Park Lots



Product Name: Retractable Hydraulic Bollard

Bollard diameter: 219-275mm
Raising height: 600mm-900mm
Color: optional

Material: Steel/iron/Aluminum
Lifting speed: 3-6s

Model:RS 1001

Size: 1.0x1.25x1.2m,1.2x1.3x1.3m



Description




Install micro hydraulic pressure into raising bollard . Every bollard is a independent unit . Compare central hydraulic system drive.It have those advantages :

No need lay underground hydraulic pipeline. Easy installation. Low construction cost

Because of Have no hydraulic pipeline. It only need inspect independent bollard during maintenance.it is easy to take out the control box from earth .Easy repair and maintenance

System takes of micro motor and a integration ports connect gear pump and oil box . Then use a all in one hydraulic cylinder to built a complete micro hydraulic .use structure parts to install this system into roadblock inner.In this way complete electronic energy >mechanical energy>hydraulic energy conversation process totally reach micro .electronic.;liquidize integration


Product features :
(1) Emergency release ;
(2) There is no limited on distance between Independent bollard and control system
(3) Can make sure more than one bollard synchronous raise and fall
(4) Can takes of short/remote control and short swing card or long range radio swing card control .
(5) Can connect with PC reach sequencing control.Suitable for high frequency high safety requirement place


Parameter




No.
Parameter
Value
1

Power supply

220V

2

Output power

0.22KW

3

Gross weight

150KG

4

Board materials

SUS304 material

5

Board thickness

6mm

6

Anti Impact standard

15K Joule

7

Bollard diameter

218mm

8

Bollard surface process

Polishing, Brushing,

9

Waterproof standard

IP67

10

Raised height 500-600mm( Optional)

11

Lift force

500KG

12

Movement manner

Motor drive

13

Movement limit

Magnet induction limit .PC time control

14

Alarm method

30mm Two ways reflective tape ( Optional LED )

15

Lift time

4-6 seconds

16

Board control

Line control /remote control or connect with other equipment

17

Control distance

Short route remote control 30-50m

18

Color

Siliver

19

Running voice

Optional
