Airport Turnstile Access Control Barrier Gate BY HIPHEN SOLUTIONS

Airport Turnstile Access Control Barrier Gate BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Product Name: Speedstile Material: 304 Stainless Steel
Thickness: 2.0mm Motor: Servo Motor
IR Sensors:: 10 Pairs (default) Passing Mode:: 【controlled Mode】 /【 Free Mode 】/【 Forbidden Mode】 Surface Treatment: Brushed Finish

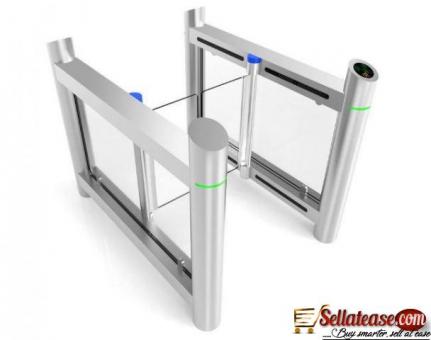

Stainless Steel Speed Gates , Pedestrian Airport Turnstile access control


Feature:


Adopt Multiple anti-clamping design to protect pedestrian's safety at maximum;


Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP

interface (optional), compatible with all kinds of access controllers;


Suitable for high-end buildings;


By using more than 10 pairs of military level high-performance infrared sensors, it can

accurately achieve many functions, such as anti-tailgating, detect illegal passing, anti-clamping and

anti-bruising, direction-judgment function and so on;


Durable because all the internal parts are with antirust and antiseptic treatment;

Mechanism with the world’s top DC brushless motor and accurately positioning

encoder, to make sure the arms to rotate rapidly and exactly, stably and noiselessly.



Technical Parameter:



Casing Material


304 grade stainless steel
Casing Dimension


1600×130×1030mm
Swing gate material


Organic glass (default); tempered glass (optional)
Mechanism


MTHTTM Lossless mechanism
Operation Voltage


DC24V
Power and Voltage


100-240VAC, 50/60HZ
Operation Temperature


﹣20℃~60℃
Communication Interface
RS485 / RS232 (default); TCP/IP (optional)


Positioning Method
Encoder


Control Input / Output
8 channels dry contact signal input / 12 channels relay control output


Working Environment
Indoors


Evacuation Passage Speed


60 people / min




Basic Function:

Passing mode switching function:The entry and exit can be set independently

【controlled mode】 /【 free mode 】/【 forbidden mode】

Automatic reset function: The turnstile will open the gate after receiving the valid opening signal

when standby. The swing gate will return to the hindered zero position automatically under the

following situation:

1) Within the allowed time, pedestrians have been detected in the specified direction passing the

passage;

2) Over the allowed time, there is no people has been detected passing in the passage.

Memory function of passing requests: When more than 2 passing signals are given at the same time

(including the same direction and opposite direction), the system will remember all the passing

requests and finish them one by one. The number can be up to 255.

Passing indication function:

1) Direction indicator: The direction indicator is installed on the top of the housing to indicate the

valid passing direction.

Stainless Steel Speed Gates, Pedestrian Airport Turnstile Access Control
