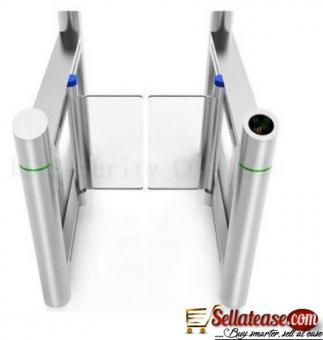

Slim Wing Access Control Barriers Toughened Glass BY HIPHEN SOLUTIONS

Slim Wing Access Control Barriers Toughened Glass BY HIPHEN SOLUTIONS

Ad details
Detailed Product Description
Product Name:: Reset Automatically Swing Barrier Gate Voltage: I: Nput 220AC
Color:: Optional Housing Material:: Stainless Steel
Opening Pattern:: Automatic Warranty:: 2 Years
Servo Driver High Speed Gates , Slim Wing Access Control Barriers Toughened Glass



Quick Detail:



Product Name: Reset Automatically Swing Barrier Gate

Voltage: Input 220AC

Color: Optional

turnstile certification: CE SGS FCC RoHS

Application: Bank, Office building, company, fitness club, prison, hotel lobby, school

Material: 304 stainless steel



RFID Access Control Swing Barrier Gate Turnstile RS 716 For Office Building




Description:



It consist of mechanism, electric circuit, motor, wing, sensors, battery, led lamp, buzzer and so on.mainly used in factory, fitness club, prison, hotel lobby, school, port. With standard fire interface, arm drops dowm for evacuation even power is not cut off when fire alarm triggered. Memory can be set,swipe cards several times for group pass.



Functions & Features:



Indicate passage status and provide directional guide
With Normal Open key function (press the key, the turnstile will keep open)
The arm will open when the power is off, will close when the power is on; meets security requirement.
With automatic self detection and alarm warning functions, convenient for use and maintenance.
Triplicate anti-pinch function: when the telescopic boom is blocked during its resetting, it will automatically stop in due time, and will reset after the default delay (until reset successfully), and the strength is small.
Auto close/ close delay function (closing time adjustable)
Anti strike function: when the arm does not get the signals for open, it will lock tightly.
Single/double swing functions, can control people entrance/exit in single or double way.
It can remote control and manage on computer, automatically reset in delay time.
With standard input & output interface; can connect with various kinds of reading & writing devices.
Counting function (optional)
Structure: frame construction/ 304 grade stainless steel case (thickness: 1.5mm); water-proof, sun block, high temperature resistance and cold resistance
Dimension: 1200/1400/1500*300*990 mm
Width of passage: ≤900mm (single piece of turnstile)
Passage mode: single-way or double-way
Reading mode: compatible with reader and writers of IC card, ID card, Magnetic card, bar code card and etc.
Working environment: indoor or out door (under overcast shelf)


Specification



Material

304 stainless steel

Input voltage

220V AC220±10%

Size

1400x115x1050mm

Arm width

290mm

Net weight

45kg/unit

Arm material

toughened glass

Motor

24V DC brush

Top Cover

stainless steel

Communication interface

RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed

30-40 people/minute

Service life

5000,000 times

Close and open time

0.6S

Input interface

Relay signal, 12V level signal,

Clear passage width

600mm

Work environment

Indoor and outdoor (shelter)

Number of led lamp

1pcs or 3 pcs

Model

RS716



Applications:



High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall
